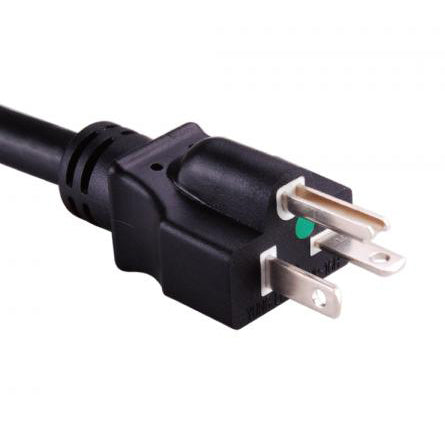

YP-16H North America  -  Hospital Grade NEMA 6-20P Cord Plug (YP-16H)

USA hospital grade green dot NEMA 6-20P power cord plug with UL approval. Built to the NEMA 6-20P standard and UL817 hospital grade green dot standard. Rated up to 20A 250V, 18A 250V, 13A 250V or 10A 250V depending upon wire thickness used. Our hospital grade NEMA 6-20P power cord plugs are fully molded with a low profile ergonomic design and RoHS and REACH compliant.

For price, availability or consultation contact us at:

Phone: 888-788-4884   Email: sales@signalandpower.com

Attribute Specification
Connector Standard NEMA 6-20P Hospital Grade Green Dot plug
Maximum Current rating 20A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Available Wire Thickness 12 through 18AWG
Outer Mold Material 35P PVC
Blade Material Nickel Coated Brass
Flamability Rating UL 94V-0
Color Black is standard but any color available
Temperature Rating -40°C through +75°C
Approvals UL file# E152635
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity

Available Wire Styles

Gauge/ # Conductors Cord Type Electrical Rating (Amps/Volts)
18/3 SJT, SJT SHIELDED, SJTW, SJTW SHIELDED, SJTO, SJTOW, ST, STW, STOW, SJ, SJO, SJOW, SJOOW, S, SO, SOW, SOOW 10/250
16/3 SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SJ, SJO, SJOW, SJOOW, S, SO, SOW, SOOW 13/250
14/3 SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SJ, SJO, SJOW, SJOOW, S, SO, SOW, SOOW 18/250
12/3 SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SJ, SJO, SJOW, SJOOW, S, SO, SOW, SOOW 20/250
