Hospital Grade NEMA 5-20P Plug (YP-17H)
- Premium Construction
- Made to Order
- Fully Tested, Approved and Certified
- High Temperature Rating
- Fast & Secure Shipping
- Description
- Product Specification
- Shipping & Returns
- Customer Review
|

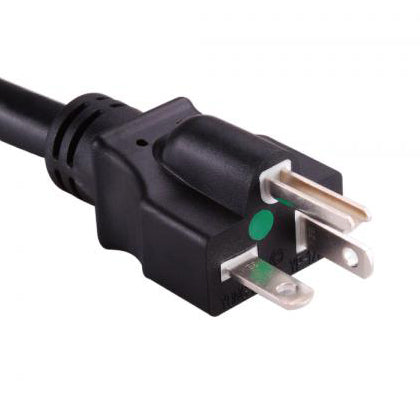

Hospital Grade: NEMA 5-20P Plug (YP-17H) - North America NEMA 5-20P hospital grade green dot USA power cord plug with UL certification. Rated up to 20A 125V, 15A 125V, 13A 125V or 10A 125V. Built to the NEMA 5-20P standard as well as the UL817 hospital grade green dot standard. Our hospital grade medical NEMA 5-20P power cord plugs are fully molded with a low profile ergonomic design and RoHS and REACH compliant. For price, availability or consultation contact us at: Phone: 888-788-4884 Email: sales@signalandpower.com |
| Attribute | Specification |
|---|---|
| Connector Standard | NEMA 5-20P 3P Hospital Grade Green Dot plug |
| Maximum Current rating | 20A |
| Maximum Voltage | 125V |
| Number of Poles and Wires | 2 poles, 3 wires |
| Available Wire Thickness | 12 through 18AWG |
| Outer Mold Material | 35P PVC |
| Blade Material | Nickel Coated Brass |
| Flamability Rating | UL 94V-0 |
| Color | Black is standard but any color available |
| Temperature Rating | -40°C through +75°C |
| Approvals | UL file# E152635 |
| Environmental Certifications | RoHS, REACH |
| Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
| Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
|---|---|---|
| 18/3 | SJT, SJT SHIELDED, SJTW, SJTW SHIELDED, SJTO, SJTOW, ST, STW, STOW, SJ, SJO, SJOW, SJOOW, S, SO, SOW, SOOW | 10/125 |
| 16/3 | SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SJ, SJO, SJOW, SJOOW, S, SO, SOW, SOOW | 13/125 |
| 14/3 | SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SJ, SJO, SJOW, SJOOW, S, SO, SOW, SOOW | 18/125 |
| 12/3 | SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SJ, SJO, SJOW, SJOOW, S, SO, SOW, SOOW | 20/125 |
| Attribute | Specification |
|---|---|
| Connector Standard | NEMA 5-20P 3P Hospital Grade Green Dot plug |
| Maximum Current rating | 20A |
| Maximum Voltage | 125V |
| Number of Poles and Wires | 2 poles, 3 wires |
| Available Wire Thickness | 12 through 18AWG |
| Outer Mold Material | 35P PVC |
| Blade Material | Nickel Coated Brass |
| Flamability Rating | UL 94V-0 |
| Color | Black is standard but any color available |
| Temperature Rating | -40°C through +75°C |
| Approvals | UL file# E152635 |
| Environmental Certifications | RoHS, REACH |
| Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
| Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
|---|---|---|
| 18/3 | SJT, SJT SHIELDED, SJTW, SJTW SHIELDED, SJTO, SJTOW, ST, STW, STOW, SJ, SJO, SJOW, SJOOW, S, SO, SOW, SOOW | 10/125 |
| 16/3 | SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SJ, SJO, SJOW, SJOOW, S, SO, SOW, SOOW | 13/125 |
| 14/3 | SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SJ, SJO, SJOW, SJOOW, S, SO, SOW, SOOW | 18/125 |
| 12/3 | SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SJ, SJO, SJOW, SJOOW, S, SO, SOW, SOOW | 20/125 |
