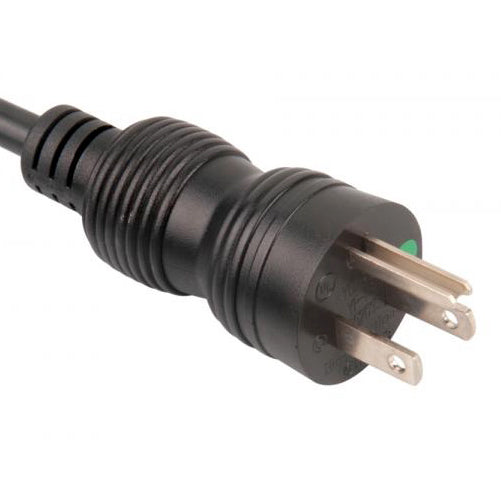

Hospital Grade NEMA 5-15P Power Cord Plug (YP-18)

Vendor: SIGNAL+POWER

SKU: YP-18

Product Type: Hospital Grade

Hospital Grade: NEMA 5-15P Power Cord Plug (YP-18) - North America NEMA 5-15P hospital grade green dot 3 prong USA power cord plug with cUL certification. Rated up to 15A 125V, 13A 125V or 10A 125V. Built to the NEMA 5-15P hospital grade standard. Certified hospital grade green dot cords with...

Description

Hospital Grade: NEMA 5-15P Power Cord Plug (YP-18) - North America

NEMA 5-15P hospital grade green dot 3 prong USA power cord plug with cUL certification. Rated up to 15A 125V, 13A 125V or 10A 125V. Built to the NEMA 5-15P hospital grade standard. Certified hospital grade green dot cords with RoHS and REACH compliance. You can buy our NEMA 5-15 hospital grade power cords in any custom configuration.

For price, availability or consultation contact us at:

Phone: 888-788-4884 Email: sales@signalandpower.com

Attribute	Specification
Connector Standard	NEMA 5-15P Hospital Grade Green Dot plug
Maximum Current rating	15A
Maximum Voltage	125V
Number of Poles and Wires	2 poles, 3 wires
Available Wire Thickness	14 through 18AWG
Outer Mold Material	35P PVC
Blade Material	Nickel Coated Brass
Flamability Rating	UL 94V-0
Color	Black is standard but any color available
Temperature Rating	-40°C through +75°C
Approvals	cUL file# E152635, CSA file# LR76393
Environmental Certifications	RoHS, REACH
Testing	Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity

Available Wire Styles

Gauge/ # Conductors	Cord Type	Electrical Rating (Amps/Volts)
18/3	SJT, SJTW, SJTO, SJTOW (All TPE material), SJT, SJTW, SJTO, SJTOW, EVE, EVJE	10/125
16/3	SJT, SJTW, SJTO, SJTOW (All TPE material), SJT, SJTW, SJTO, SJTOW, EVE, EVJE	13/125
14/3	SJT, SJTW, SJTO, SJTOW (All TPE material), SJT, SJTW, SJTO, SJTOW, EVE, EVJE	15/125
