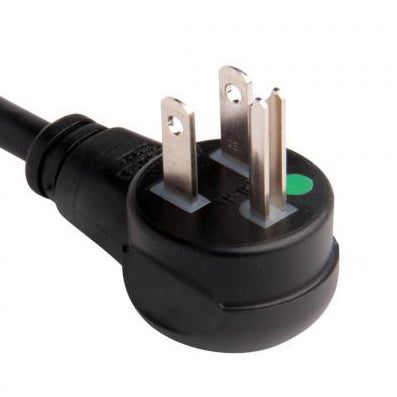

Hospital Grade Down Angle NEMA 5-15P (YP-18L-5)
Hospital Grade: Down Angle NEMA 5-15P (YP-18L-5) - North America NEMA 5-15P USA hospital grade green dot down angle 3 prong power cord plug with cUL certification. Rated up to 15A 125V, 13A 125V or 10A 125V. Built to the NEMA 5-15P hospital grade standard. Certified hospital grade green dot cords...
CONTACT US TO ORDER
Hospital Grade: Down Angle NEMA 5-15P (YP-18L-5) - North America NEMA 5-15P USA hospital grade green dot down angle 3 prong power cord plug with cUL certification. Rated up to 15A 125V, 13A 125V or 10A 125V. Built to the NEMA 5-15P hospital grade standard. Certified hospital grade green dot cords with RoHS and REACH compliance. For price, availability or consultation contact us at: Phone: 888-788-4884 Email: sales@signalandpower.com |
Attribute | Specification |
---|---|
Connector Standard | NEMA 5-15P down angle Hospital Grade Green Dot plug |
Maximum Current rating | 15A |
Maximum Voltage | 125V |
Number of Poles and Wires | 2 poles, 3 wires |
Available Wire Thickness | 14 through 18AWG |
Outer Mold Material | 35P PVC |
Blade Material | Nickel Coated Brass |
Flamability Rating | UL 94V-0 |
Color | Black is standard but any color available |
Temperature Rating | -40°C through +75°C |
Approvals | cUL file# E152635, CSA file# LR76393 |
Environmental Certifications | RoHS, REACH |
Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
---|---|---|
18/3 | SJT, SJTW, SJTO, SJTOW (All TPE material), SJT, SJTW, SJTO, SJTOW, EVE, EVJE | 10/125 |
16/3 | SJT, SJTW, SJTO, SJTOW (All TPE material), SJT, SJTW, SJTO, SJTOW, EVE, EVJE | 13/125 |
14/3 | SJT, SJTW, SJTO, SJTOW (All TPE material), SJT, SJTW, SJTO, SJTOW, EVE, EVJE | 15/125 |
