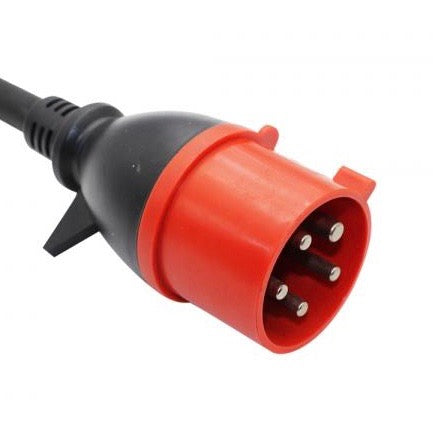

532P6 IEC 60309 Molded Power Cord Plug (YP-532)

Vendor: SIGNAL+POWER

SKU: YP-532

Product Type: OEM Custom

OEM Custom: 532P6 IEC 60309 Molded Power Cord Plug (YP-532) 5 pin IEC 309 32A three phase Pin and Sleeve international power cords with a molded low profile splash-proof IP44 design. Their hour designation is six and these power cords are available with H07RN-F rubber wire or H05VV-F PVC wire and...

Description

OEM Custom: 532P6 IEC 60309 Molded Power Cord Plug (YP-532)

5 pin IEC 309 32A three phase Pin and Sleeve international power cords with a molded low profile splash-proof IP44 design. Their hour designation is six and these power cords are available with H07RN-F rubber wire or H05VV-F PVC wire and are TUV certified and approved.

For price, availability or consultation contact us at:

Phone: 888-788-4884 Email: sales@signalandpower.com

ATTRIBUTE	SPECIFICATION
Connector Standard	IEC 60309 532P6
Number of Contacts	5 (3P + N + PE) Note: P = Pole, N = Neutral, PE = Earth or ground
Position of Earthing Contact	6h (hour designation)
Maximum Current rating	32A
Maximum Voltage	200/346V, 240/415V
Frequency Rating	50/60Hz
Ingress Protection Rating	IP 44
Number of Poles and Wires	4 poles, 5 wires
Available Wire Thickness	4.0mm² and 6.0mm²
Outer Shell Color	Red
Outer Housing Outer Mold Material	High Impact Nylon (PA66 or also known as polyamide)
Lower Housing Outer Mold Material	35P PVC (Black)
Terminal Blade Material	Brass
Flammability Rating	UL 94V-2
Temperature Rating	-40°C through +75°C
Approvals	TUV
Environmental Certifications	RoHS 2, RoHS, REACH
Testing	Hi-Pot (Dielectric Withstanding Voltage), Polarity and Continuity

Available Wire Styles

GAUGE/ # CONDUCTORS	CORD TYPE	ELECTRICAL RATING (AMPS/VOLTS)
4.0mm²	H05VV-F (PVC wire jacket)	32A/346V or 32A/415V
4.0mm²	H07RN-F (rubber wire jacket)	32A/346V or 32A/415V
6.0mm²	H07RN-F (rubber wire jacket)	32A/346V or 32A/415V
