OEM Custom

CEE7/7 Schuko Power Cord Plug (YP-23)

YP-23 Europe BLK QTY

Regular price Save $0.00
Shop Wholesale / Login

OEM Custom
YP-23 Europe  -  CEE7/7 Schuko Power Cord Plug (YP-23)

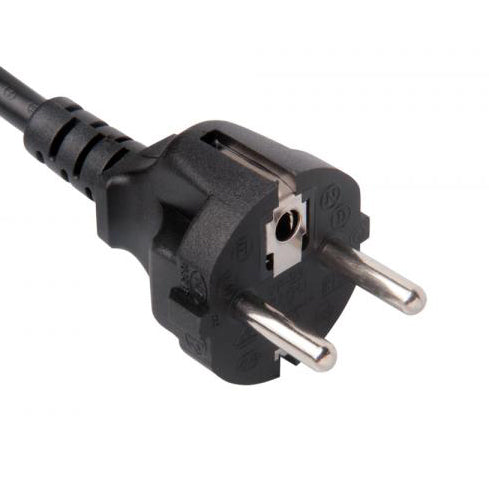

CEE7/7 European Schuko three prong power cord plug with VDE and 12 other certifications. Rated up to 16A 250V. This item is also known as the CEE7/7 mains plug and is certified to conform with the DIN VDE 0620-1 German plug standard. Many people refer to this European power cord plug as the Schuko mains plug or just standard European mains plug and is the most common plug used for European mains power leads. Our European three prong power cord plugs carry all the European country approvals including OVE, CEBEC, DEMKO, FIMKO, LCIE, VDE, IMQ, KEMA, NEMKO, SEMKO, ESTI, and ASTA certified. Our European power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant. Note: While physically identical, the following countries have their own standards name for this plug: Germany: DIN 49441, DIN 49440-1, DIN VDE 0620-1 and DIN VDE 0620-2-1, Russia: GOST 7396, Greece: ELOT 1413-1, Netherlands: NEN 1020, Spain: UNE 20315, France: NF C 61-303, Belgium: NBN C 61-112-1, Finland: SFS 5610.

For price, availability or consultation contact us at:

Phone: 888-788-4884   Email: sales@signalandpower.com

Attribute Specification
Connector Standard CEE7/7 Schuko European plug (also known as DIN VDE 0620-1)
Maximum Current rating 16A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Available Wire Thickness 0.75mm² through 1.5mm²
Outer Mold Material 50P PVC
Blade Material Nickel Coated Brass
Flammability Rating UL 94V-0
Color Black is standard but any color available
Temperature Rating -40°C through +75°C
Approvals German VDE license# 40005197 and many others
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity
