OEM Custom

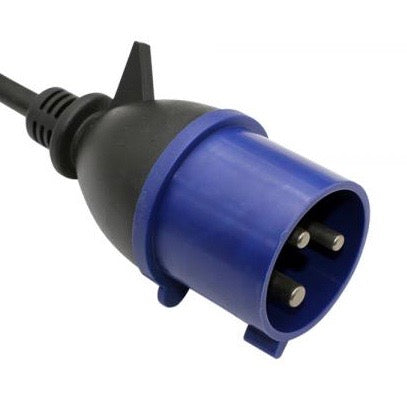

332P6 IEC 60309 Molded Power Cord Plug (YP-332)


Regular price Save $0.00
Shop Wholesale / Login

OEM Custom
YP-332  -  332P6 IEC 60309 Molded Power Cord Plug (YP-332)

332P6:  32A IEC 309 three pin single phase pin and sleeve power cords with a molded low profile splashproof design.  Their hour designation is 6, their ingress protection rating is 44 and these power cords are available with rubber or PVC wire and are TUV approved.


For price, availability or consultation contact us at:

Phone: 888-788-4884   Email: sales@signalandpower.com

Connector Standard IEC 60309 332P6
Number of Contacts 3 (2P + PE) Note: P = Pole, PE = Earth or ground
Position of Earthing Contact 6h (hour designation)
Maximum Current rating 32A
Maximum Voltage 200 - 250V
Frequency Rating 50/60Hz
Ingress Protection Rating IP 44
Number of Poles and Wires 2 poles, 3 wires
Available Wire Thickness 4.0mm² and 6.0mm²
Outer Shell Color Blue
Outer Housing Outer Mold Material High Impact Nylon (PA66 or also known as polyamide)
Lower Housing Outer Mold Material 35P PVC (Black)
Terminal Blade Material Brass
Flammability Rating UL 94V-2
Temperature Rating -40°C through +75°C
Approvals TUV
Environmental Certifications RoHS 2, RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity and Continuity
