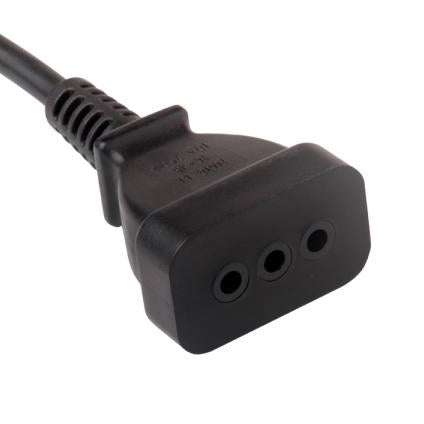

CEI 23-50 Italy Power Cord Receptacle (YC-45)

SIGNAL+POWER
YC-45 Italy BLK QTY
OEM Custom
OEM Custom  YC-45 Italy  -  CEI 23-50 Italy Power Cord Receptacle (YC-45) Italy 3 Prong Receptacle: Italy IMQ certified 3 prong CEI 23-50 power cord receptacle; female CEI 23-50. Built to the Italy CEI 23-50 power cord receptacle standard. Rated up to 10A 250V. Our Italian power cord products are...


CONTACT US TO ORDER



customers are viewing this product

OEM Custom
YC-45 Italy  -  CEI 23-50 Italy Power Cord Receptacle (YC-45)

Italy 3 Prong Receptacle: Italy IMQ certified 3 prong CEI 23-50 power cord receptacle; female CEI 23-50. Built to the Italy CEI 23-50 power cord receptacle standard. Rated up to 10A 250V. Our Italian power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant.

For price, availability or consultation contact us at:

Phone: 888-788-4884   Email: sales@signalandpower.com

Attribute Specification
Connector Standard Italy CEI 23-50 3 pin receptacle (formerly CEI 23-16)
Maximum Current rating 10A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Available Wire Thickness 0.75mm² through 1.5mm²
Outer Mold Material 50P PVC
Blade Material Nickel Coated Brass
Flammability Rating UL 94V-0
Color Black is standard but any color available
Temperature Rating -40°C through +75°C
Approvals Italy IMQ
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity
