AFSNIT 107-2-D1 Denmark Power Cord Plug (YP-26)

YP-26 Denmark BLK QTY

Regular price Save $0.00
Shop Wholesale / Login

OEM Custom
YP-26 Denmark  -  AFSNIT 107-2-D1 Denmark Power Cord Plug (YP-26)

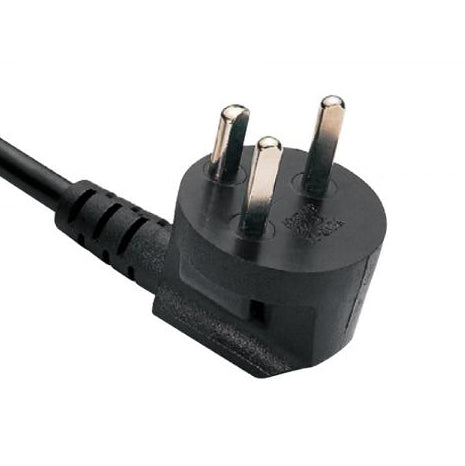

AFSNIT 107-2-D1 (also known as DS 60884-2-D1, IEC 60884-1, and SRAF 1962/DB 16/87) Denmark three prong power cord plug with DEMKO certification. Rated up to 10A 250V. Our Danish power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant. The Denmark compliance agency called DEMKO recognizes both plug standard AFSNIT 107-2-D1 and SRAF 1962/DB 16/87 as acceptable and are identical for the Danish power cord three prong plug as well as the standards DS 60884-2-D1 and IEC 60884-1.

For price, availability or consultation contact us at:

Phone: 888-788-4884   Email: sales@signalandpower.com

Attribute Specification
Connector Standard Denmark AFSNIT 107-2-D1 3 prong plug
Maximum Current rating 10A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Available Wire Thickness 0.75mm², 1.0mm², and 1.5mm²
Outer Mold Material 50P PVC
Blade Material Nickel Coated Brass
Flammability Rating UL 94V-0
Color Black is standard but any color available
Temperature Rating -40°C through +75°C
Approvals Denmark DEMKO certificate# 131824-01
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity
