Brazil 16A NBR14136 (YP-05)
- Fully Certified by Territory
- Made to Order
- Expert Advice Available on Product
- Fast & Secure Shipping
- Description
- Product Specification
- Shipping & Returns
- Customer Review
|

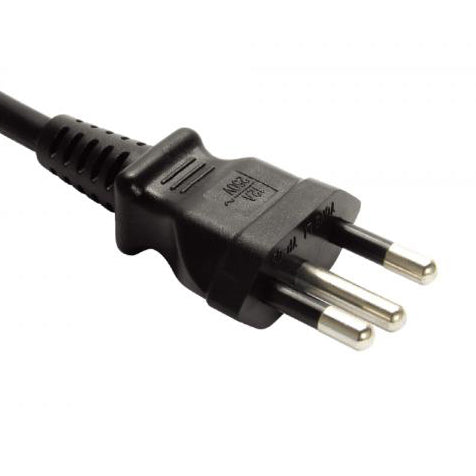

OEM Custom: 16A NBR14136 Brazil Power Cord Plug (YP-05) Brazil INMETRO certified 3 prong heavy duty NBR 14136 and IEC 60906-1 power cord plug. Rated up to 16A 250V. Note: This heavy duty Brazil plug looks exactly like the "standard" Brazil plug but is larger. Built to the NBR 14136 and IEC 60906-1 standards. Our Brazil power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant. For price, availability or consultation contact us at: Phone: 888-788-4884 Email: sales@signalandpower.com |
| Attribute | Specification |
|---|---|
| Connector Standard | Brazil NBR 14136 (Also known as IEC 60906-1) industrial 3 prong plug (larger than YP-04) |
| Maximum Current rating | 16A |
| Maximum Voltage | 250V |
| Number of Poles and Wires | 2 poles, 3 wires |
| Available Wire Thickness | 1.0mm² through 1.5mm² |
| Outer Mold Material | 50P PVC |
| Blade Material | Nickel Coated Brass |
| Flammability Rating | UL 94V-0 |
| Color | Black is standard but any color available |
| Temperature Rating | -40°C through +75°C |
| Approvals | Brazil INMETRO certificate# DPC-12680 and DPC-9239-IA |
| Environmental Certifications | RoHS, REACH |
| Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
| Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
|---|---|---|
| 1.00mm² | H05VV-F | 12/250 |
| 1.50mm² | H05VV-F | 16/250 |
| Attribute | Specification |
|---|---|
| Connector Standard | Brazil NBR 14136 (Also known as IEC 60906-1) industrial 3 prong plug (larger than YP-04) |
| Maximum Current rating | 16A |
| Maximum Voltage | 250V |
| Number of Poles and Wires | 2 poles, 3 wires |
| Available Wire Thickness | 1.0mm² through 1.5mm² |
| Outer Mold Material | 50P PVC |
| Blade Material | Nickel Coated Brass |
| Flammability Rating | UL 94V-0 |
| Color | Black is standard but any color available |
| Temperature Rating | -40°C through +75°C |
| Approvals | Brazil INMETRO certificate# DPC-12680 and DPC-9239-IA |
| Environmental Certifications | RoHS, REACH |
| Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
| Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
|---|---|---|
| 1.00mm² | H05VV-F | 12/250 |
| 1.50mm² | H05VV-F | 16/250 |
