YC-18L (Right Angle IEC C19) Taiwan
- Fully Certified by Territory
- Made to Order
- Expert Advice Available on Product
- Fast & Secure Shipping
- Description
- Product Specification
- Shipping & Returns
- Customer Review
|

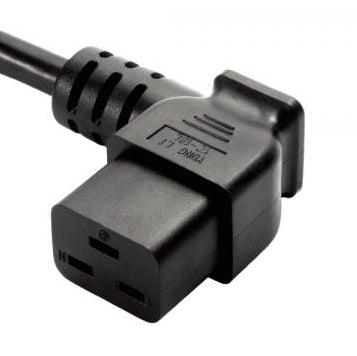

OEM Custom CE, VDE and ENEC certified 3 prong IEC C19 right angle power cord receptacle. Built to the IEC320-C19 standard for use in Taiwan. Rated up to 20A 250V. Our Taiwan C19 power cord receptacles are fully molded with a low profile ergonomic design. For price, availability or consultation contact us at: Phone: 888-788-4884 Email: sales@signalandpower.com |
| Attribute | Specification |
|---|---|
| Connector Standard | IEC 60320 C19 right angle |
| Maximum Current rating | 20A |
| Maximum Voltage | 250V |
| Number of Poles and Wires | 2 poles, 3 wires |
| Available Wire Thickness | 2.0mm² through 3.5mm² |
| Outer Mold Material | 50P PVC |
| Blade Material | Brass |
| Flammability Rating | UL 94V-0 |
| Color | Black is standard but any color available |
| Temperature Rating | -40°C through +75°C |
| Approvals | VDE, ENEC, CE |
| Environmental Certifications | RoHS, REACH |
| Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
| Attribute | Specification |
|---|---|
| Connector Standard | IEC 60320 C19 right angle |
| Maximum Current rating | 20A |
| Maximum Voltage | 250V |
| Number of Poles and Wires | 2 poles, 3 wires |
| Available Wire Thickness | 2.0mm² through 3.5mm² |
| Outer Mold Material | 50P PVC |
| Blade Material | Brass |
| Flammability Rating | UL 94V-0 |
| Color | Black is standard but any color available |
| Temperature Rating | -40°C through +75°C |
| Approvals | VDE, ENEC, CE |
| Environmental Certifications | RoHS, REACH |
| Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
