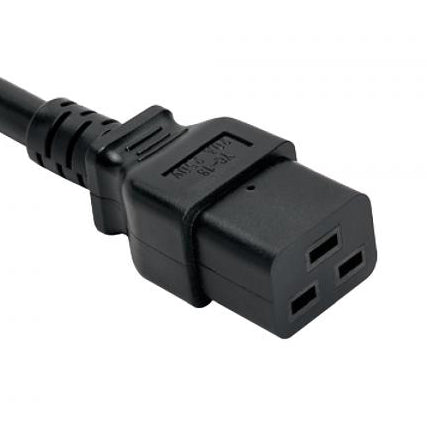

YC-18 (IEC C19) Hong Kong
OEM Custom: YC-18 (IEC C19) Hong Kong IEC C19 3 prong power cord receptacle with all necessary approvals including CE, VDE, ENEC, OVE, CEBEC, DEMKO, FIMKO, LCIE, IMQ, KEMA, NEMKO, SEMKO, ESTI, and ASTA. Built to the IEC320-C19 standard for use in Hong Kong. Rated up to 16A 250V. For price,...
CONTACT US TO ORDER
OEM Custom: YC-18 (IEC C19) Hong Kong IEC C19 3 prong power cord receptacle with all necessary approvals including CE, VDE, ENEC, OVE, CEBEC, DEMKO, FIMKO, LCIE, IMQ, KEMA, NEMKO, SEMKO, ESTI, and ASTA. Built to the IEC320-C19 standard for use in Hong Kong. Rated up to 16A 250V. For price, availability or consultation contact us at: Phone: 888-788-4884 Email: sales@signalandpower.com |
Attribute | Specification |
---|---|
Connector Standard | IEC 60320 C19 |
Maximum Current rating | 16A |
Maximum Voltage | 250V |
Number of Poles and Wires | 2 poles, 3 wires |
Available Wire Thickness | 1.0mm through 1.5mm |
Outer Mold Material | 50P PVC |
Blade Material | Brass |
Flamability Rating | UL 94V-0 |
Color | Black is standard but any color available |
Temperature Rating | -40C through +75C |
Approvals | CE, ENEC certificate# 40028725, German VDE license# 40023682, CE and many others |
Environmental Certifications | RoHS, REACH |
Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
---|---|---|
1.00mm² | H05VV-F | 10/250 |
1.50mm² | H05VV-F | 16/250 |
