YC-15 (JIS C 8303) Japan
- Fully Certified by Territory
- Made to Order
- Expert Advice Available on Product
- Fast & Secure Shipping
- Description
- Product Specification
- Shipping & Returns
- Customer Review
|

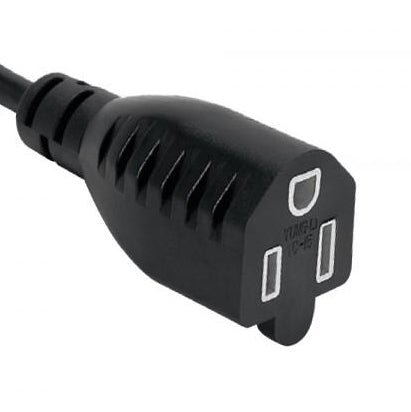

OEM Custom: YC-15 (JIS C 8303) Japan Japan PSE certified 3 prong JIS C 8303 power cord receptacle. Built to the JIS-C-8303 Japanese power cord receptacle standard. Rated up to 7A 125V, 12A 125V or 15A 125V. Our Japanese power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant. For price, availability or consultation contact us at: Phone: 888-788-4884 Email: sales@signalandpower.com |
| Attribute | Specification |
|---|---|
| Connector Standard | JIS C 8303 3P (equivalent to the USA NEMA 5-15R) |
| Maximum Current rating | 15A |
| Maximum Voltage | 125V |
| Number of Poles and Wires | 2 poles, 3 wires |
| Available Wire Thickness | 0.75mm², 1.25mm², and 2.0mm² |
| Outer Mold Material | 50P PVC |
| Blade Material | Brass |
| Flammability Rating | UL 94V-0 |
| Color | Black is standard but any color available |
| Temperature Rating | -40°C through +75°C |
| Approvals | Japan PSE JET Certificate# JET1945-43006-1002 |
| Environmental Certifications | RoHS, REACH |
| Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
| Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
|---|---|---|
| 0.75mm² | VCTF, HVCTF | 7/125 |
| 1.25mm² | VCTF, HVCTF | 12/125 |
| 2.00mm² | VCTF, HVCTF | 15/125 |
| Attribute | Specification |
|---|---|
| Connector Standard | JIS C 8303 3P (equivalent to the USA NEMA 5-15R) |
| Maximum Current rating | 15A |
| Maximum Voltage | 125V |
| Number of Poles and Wires | 2 poles, 3 wires |
| Available Wire Thickness | 0.75mm², 1.25mm², and 2.0mm² |
| Outer Mold Material | 50P PVC |
| Blade Material | Brass |
| Flammability Rating | UL 94V-0 |
| Color | Black is standard but any color available |
| Temperature Rating | -40°C through +75°C |
| Approvals | Japan PSE JET Certificate# JET1945-43006-1002 |
| Environmental Certifications | RoHS, REACH |
| Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
| Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
|---|---|---|
| 0.75mm² | VCTF, HVCTF | 7/125 |
| 1.25mm² | VCTF, HVCTF | 12/125 |
| 2.00mm² | VCTF, HVCTF | 15/125 |
