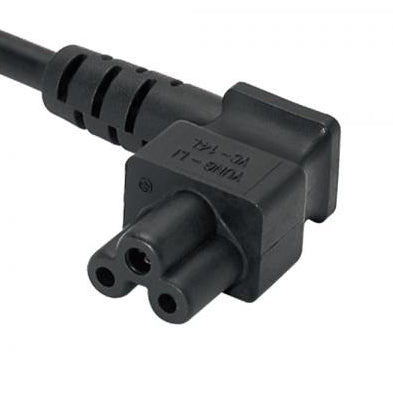

YC-14L (Right Angle IEC C5) Korea

SIGNAL+POWER
YC-14L Korea BLK QTY
OEM Custom
OEM Custom  YC-14L Korea  -  YC-14L (IEC C5 Right Angle) Korea Korea 3 prong right angle IEC C5 power cord receptacle. Built to the IEC 60320-C5 standard for use in Korea with CE, VDE and ENEC certifications. Rated up to 2.5A 250V. For price, availability or consultation contact us at:...


CONTACT US TO ORDER



OEM Custom
YC-14L Korea  -  YC-14L (IEC C5 Right Angle) Korea

Korea 3 prong right angle IEC C5 power cord receptacle. Built to the IEC 60320-C5 standard for use in Korea with CE, VDE and ENEC certifications. Rated up to 2.5A 250V.

For price, availability or consultation contact us at:

Phone: 888-788-4884   Email: sales@signalandpower.com

Attribute Specification
Connector Standard IEC 60320 C5 right angle
Maximum Current rating 2.5A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Available Wire Thickness 0.75mm² and 1.0mm²
Outer Mold Material 50P PVC
Blade Material Phosphorous Bronze
Flammability Rating UL 94V-0
Color Black is standard but any color available
Temperature Rating -40°C through +75°C
Approvals CE, ENEC, VDE and many others
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity

Available Wire Styles

Gauge/ # Conductors Cord Type Electrical Rating (Amps/Volts)
0.75mm² H05VV-F 2.5/250
1.00mm² H05VV-F 2.5/250
