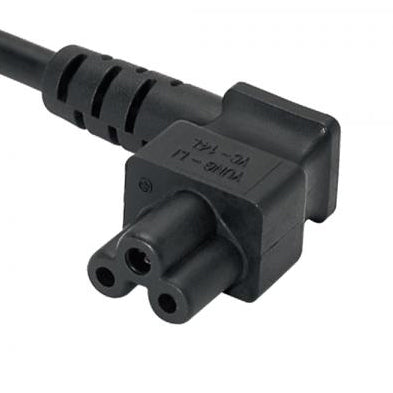

YC-14L Singapore  -  YC-14L (IEC C5 Right Angle) Singapore

CE, VDE and ENEC 3 prong right angle IEC C5 power cord receptacle. Bui

For price, availability or consultation contact us at:

Phone: 888-788-4884   Email: sales@signalandpower.com

Attribute Specification
Connector Standard IEC 60320 C5 right angle
Maximum Current rating 2.5A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Available Wire Thickness 0.75mm and 1.0mm
Outer Mold Material 50P PVC
Blade Material Phosphorous Bronze
Flamability Rating UL 94V-0
Color Black is standard but any color available
Temperature Rating -40C through +75C
Approvals ENEC, VDE, CE and many others
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity

Available Wire Styles

Gauge/ # Conductors Cord Type Electrical Rating (Amps/Volts)
0.75mm² H05VV-F 2.5/250
1.00mm² H05VV-F 2.5/250
