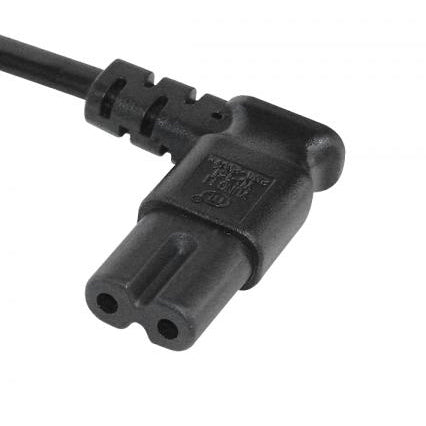

YC-13L (Right Angle IEC C7) Malaysia
OEM Custom: YC-13L (Right Angle IEC C7) Malaysia IEC C7 2 prong right angle power cord receptacle with all European approvals including CE, ENEC, VDE and many others. Built to the IEC 60320-C7 standard. Rated up to 2.5A 250V. This IEC C7 right angle receptacle and all our Malaysia products come...
CONTACT US TO ORDER
OEM Custom: YC-13L (Right Angle IEC C7) Malaysia IEC C7 2 prong right angle power cord receptacle with all European approvals including CE, ENEC, VDE and many others. Built to the IEC 60320-C7 standard. Rated up to 2.5A 250V. This IEC C7 right angle receptacle and all our Malaysia products come with all required certifications as well as RoHS and REACH approvals. For price, availability or consultation contact us at: Phone: 888-788-4884 Email: sales@signalandpower.com |
Attribute | Specification |
---|---|
Connector Standard | IEC 60320 C7 right angle |
Maximum Current rating | 2.5A |
Maximum Voltage | 250V |
Number of Poles and Wires | 2 poles, 2 wires |
Available Wire Thickness | 0.75mm |
Outer Mold Material | 50P PVC |
Blade Material | Phosphorous Bronze |
Flamability Rating | UL 94V-0 |
Color | Black is standard but any color available |
Temperature Rating | -40C through +75C |
Approvals | ENEC certificate# 40029577, ASTA license# 785 and many others |
Environmental Certifications | RoHS, REACH |
Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
---|---|---|
0.75mm² | H03VVH2-F | 2.5/250 |
