YC-13D Singapore  -  YC-13D (IEC C7 Down Angle) Singapore

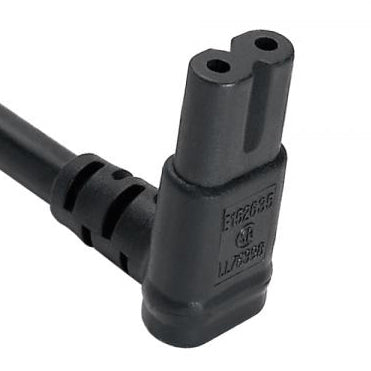

CE, VDE and ENEC 2 prong down angle IEC C7 power cord receptacle. Built to the IEC 60320-C7 standard. Rated up to 2.5A 250V. All of our Singapore product fully complies and carries all necessary certifications for both Singapore and Malaysia

For price, availability or consultation contact us at:

Phone: 888-788-4884   Email: sales@signalandpower.com

Attribute Specification
Connector Standard IEC 60320 C7 down angle
Maximum Current rating 2.5A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 2 wires
Available Wire Thickness 0.75mm
Outer Mold Material 50P PVC
Blade Material Phosphorous Bronze
Flamability Rating UL 94V-0
Color Black is standard but any color available
Temperature Rating -40C through +75C
Approvals ENEC, VDE, CE and many others
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity
