YC-13 (IEC C7) Hong Kong

SIGNAL+POWER
YC-13 Hong Kong BLK QTY
OEM Custom
OEM Custom  YC-13 Hong Kong  -  YC-13 (IEC C7) Hong Kong IEC C7 two prong power cord receptacle with all necessary approvals including CE, VDE, ENEC and many others. Built to the IEC 60320-C7 standard for use in Hong Kong. Rated up to 2.5A 250V. Our IEC C7 receptacles are...


CONTACT US TO ORDER



customers are viewing this product

OEM Custom
YC-13 Hong Kong  -  YC-13 (IEC C7) Hong Kong

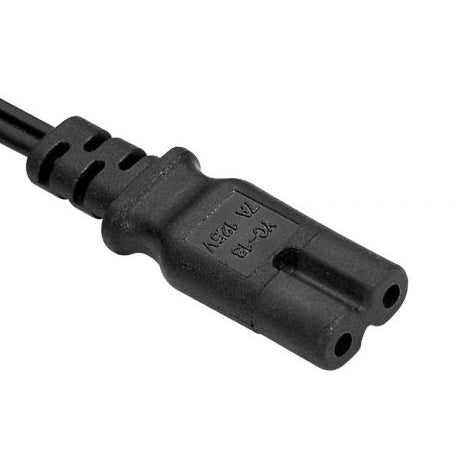

IEC C7 two prong power cord receptacle with all necessary approvals including CE, VDE, ENEC and many others. Built to the IEC 60320-C7 standard for use in Hong Kong. Rated up to 2.5A 250V. Our IEC C7 receptacles are molded with low profile ergonomic design and fully RoHS and REACH certified

For price, availability or consultation contact us at:

Phone: 888-788-4884   Email: sales@signalandpower.com

Attribute Specification
Connector Standard IEC 60320 C7
Maximum Current rating 2.5A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 2 wires
Available Wire Thickness 0.75mm
Outer Mold Material 50P PVC
Blade Material Phosphorous Bronze
Flamability Rating UL 94V-0
Color Black is standard but any color available
Temperature Rating -40C through +75C
Approvals ENEC certificate# 40029577, German VDE license# 40005197, CE andmany others
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity

Available Wire Styles

Gauge/ # Conductors Cord Type Electrical Rating (Amps/Volts)
0.75mm² H03VVH2-F 2.5/250
