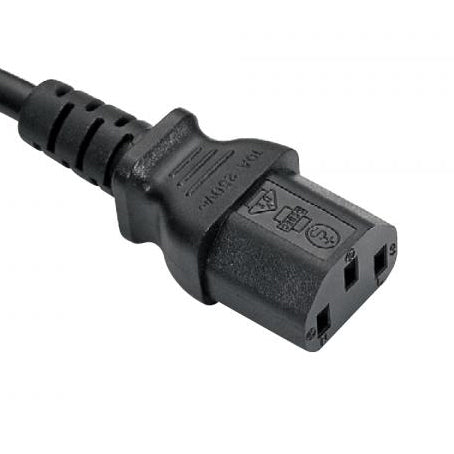

YC-12 (IEC C13) Singapore

SIGNAL+POWER
YC-12 Singapore BLK QTY
OEM Custom
OEM Custom  YC-12 Singapore  -  YC-12 (IEC C13) Singapore CE, VDE and ENEC certified 3 prong IEC C13 power cord receptacle. Built to the IEC 60320-C13 standard for use in Singapore or Malaysia. Rated up to 10A 250V For price, availability or consultation contact us at: Phone: 888-788-4884   Email: sales@signalandpower.com...


CONTACT US TO ORDER



OEM Custom
YC-12 Singapore  -  YC-12 (IEC C13) Singapore

CE, VDE and ENEC certified 3 prong IEC C13 power cord receptacle. Built to the IEC 60320-C13 standard for use in Singapore or Malaysia. Rated up to 10A 250V

For price, availability or consultation contact us at:

Phone: 888-788-4884   Email: sales@signalandpower.com

Attribute Specification
Connector Standard IEC 60320 C13
Maximum Current rating 10A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Available Wire Thickness 0.75mm through 1.5mm
Outer Mold Material 50P PVC
Blade Material Brass
Flamability Rating UL 94V-0
Color Black is standard but any color available
Temperature Rating -40C through +75C
Approvals ENEC, VDE, CE and many others
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity

Available Wire Styles

Gauge/ # Conductors Cord Type Electrical Rating (Amps/Volts)
0.75mm² H05VV-F 10/250
1.00mm² H05VV-F 10/250
1.50mm² H05VV-F 10/250
