YP-107 North America  -  NEMA L7-15P Power Cord Plug (YP-107)

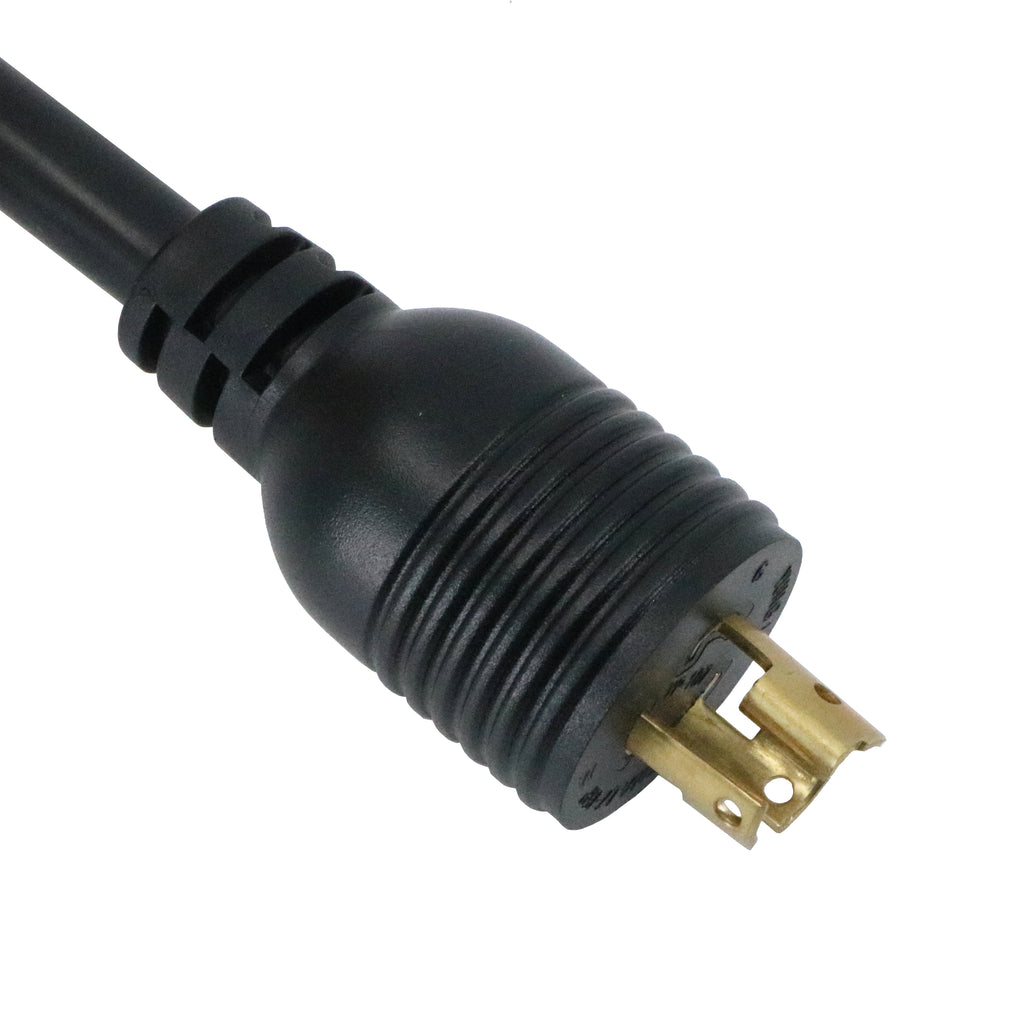

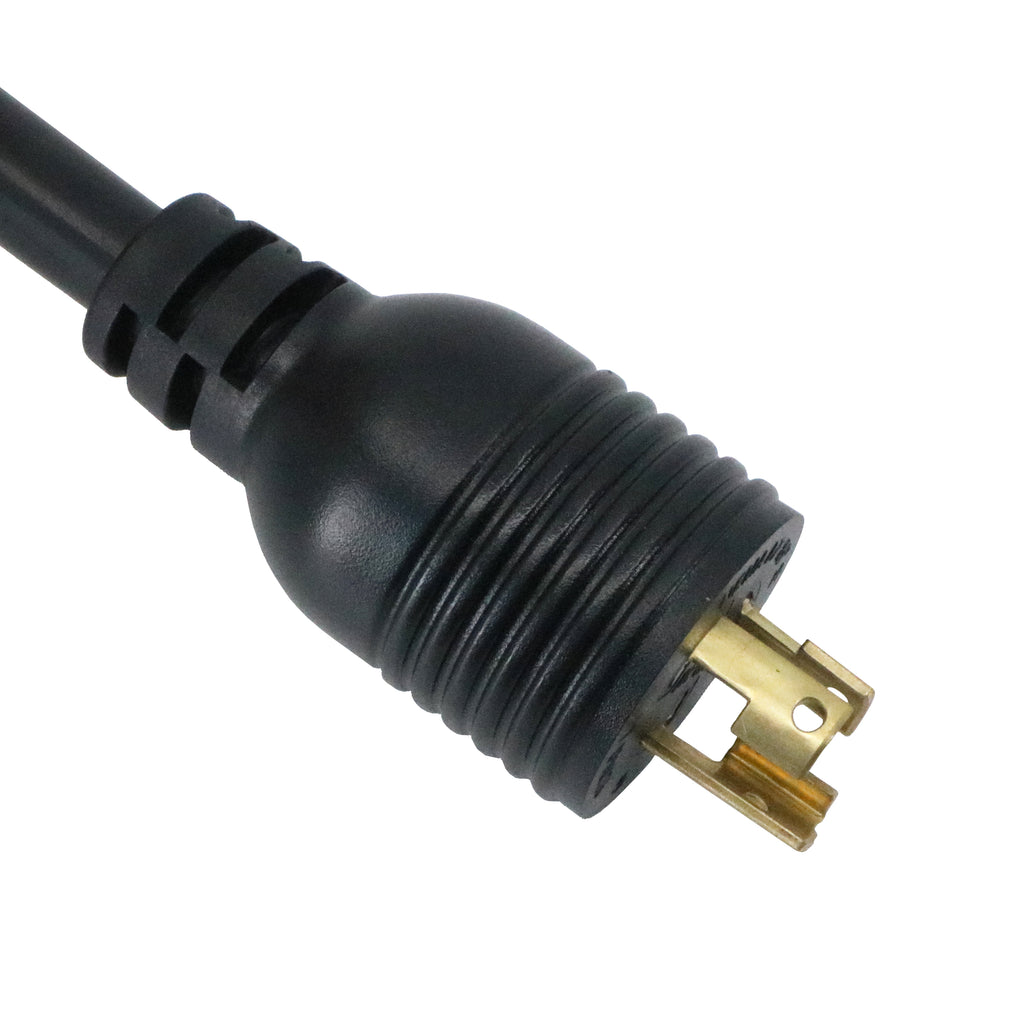

NEMA L7-15P twist lock power cord plug with cUL approval. Built to the NEMA L7-15P standard. Rated up to 15A 277V. These NEMA L7-15P power cords are fully molded with a low profile ergonomic shape with RoHS and REACH compliance.

For price, availability or consultation contact us at:

Phone: 888-788-4884   Email: sales@signalandpower.com

ATTRIBUTE SPECIFICATION
Connector Standard NEMA L7-15P 3 prong locking plug
Maximum Current rating 15A
Maximum Voltage 277V
Number of Poles and Wires 2 poles, 3 wires
Available Wire Thickness 12 through 18AWG
Outer Mold Material 35P PVC
Blade Material Brass
Flammability Rating UL 94V-0
Color Black is standard but any color available
Temperature Rating -20°C through +75°C
Approvals cUL file# E152635
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity

Available Wire Styles

GAUGE/ # CONDUCTORS CORD TYPE ELECTRICAL RATING (AMPS/VOLTS)
18/3 SJ, SJO, SJOW, SJOO, SJOOW, S, SO, SOW, SOO, SOOW, SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW, ST, STW, STO, STOW, STOO, STOOW 10/277
16/3 SJ, SJO, SJOW, SJOO, SJOOW, S, SO, SOW, SOO, SOOW, SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW, ST, STW, STO, STOW, STOO, STOOW 13/277
14/3 SJ, SJO, SJOW, SJOO, SJOOW, S, SO, SOW, SOO, SOOW, SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW, ST, STW, STO, STOW, STOO, STOOW 15/277
12/3 SJ, SJO, SJOW, SJOO, SJOOW, S, SO, SOW, SOO, SOOW, SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW, ST, STW, STO, STOW, STOO, STOOW 15/277
