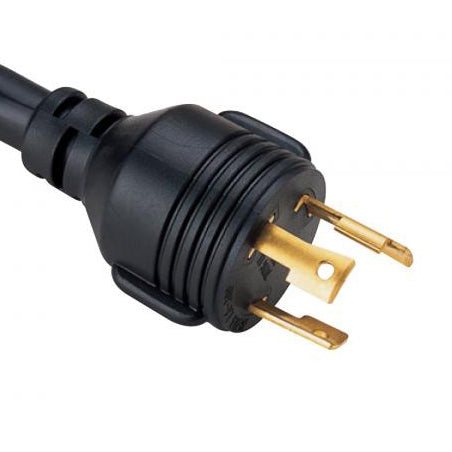

Japan L6-20P Power Cords (YP-53)

SIGNAL+POWER
YP-53
OEM Custom
OEM Custom: Japan L6-20P Power Cords (YP-53) Japan PSE approved NEMA L6-20P 20A 250V locking power cords. These Japanese NEMA L6-20P power cords are fully molded with a low profile ergonomic shape with RoHS and REACH compliance. You can buy our Japan NEMA L6-20P power cords in standard and custom configurations....


CONTACT US TO ORDER



OEM Custom: Japan L6-20P Power Cords (YP-53)

Japan PSE approved NEMA L6-20P 20A 250V locking power cords. These Japanese NEMA L6-20P power cords are fully molded with a low profile ergonomic shape with RoHS and REACH compliance. You can buy our Japan NEMA L6-20P power cords in standard and custom configurations.

For price, availability or consultation contact us at:

Phone: 888-788-4884   Email: sales@signalandpower.com

Attribute Specification
Connector Standard NEMA L6-20P Locking Plug
Maximum Current rating 20A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Available Wire Thickness 2.0mm² through 3.5mm²
Outer Mold Material 50P PVC
Blade Material Nickel Coated Brass
Flammability Rating UL 94V-0
Color Black is standard but any color available
Temperature Rating -40°C through +75°C
Approvals Japan PSE certificate# JET5087-43001-1022
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity

Available Wire Styles

Gauge/ # Conductors Cord Type Electrical Rating (Amps/Volts)
2.00mm² VCT, HVFF, HVCTF, HVCTFK 15/250
3.50mm² VFF, VCTF, VCTFK 20/250
