6' Power Cord

India IS1293 to C5

P-8014-06B BLK QTY

Regular price $7.44 Save $-7.44
480 in stock
Shop Wholesale / Login

P-8014-06B

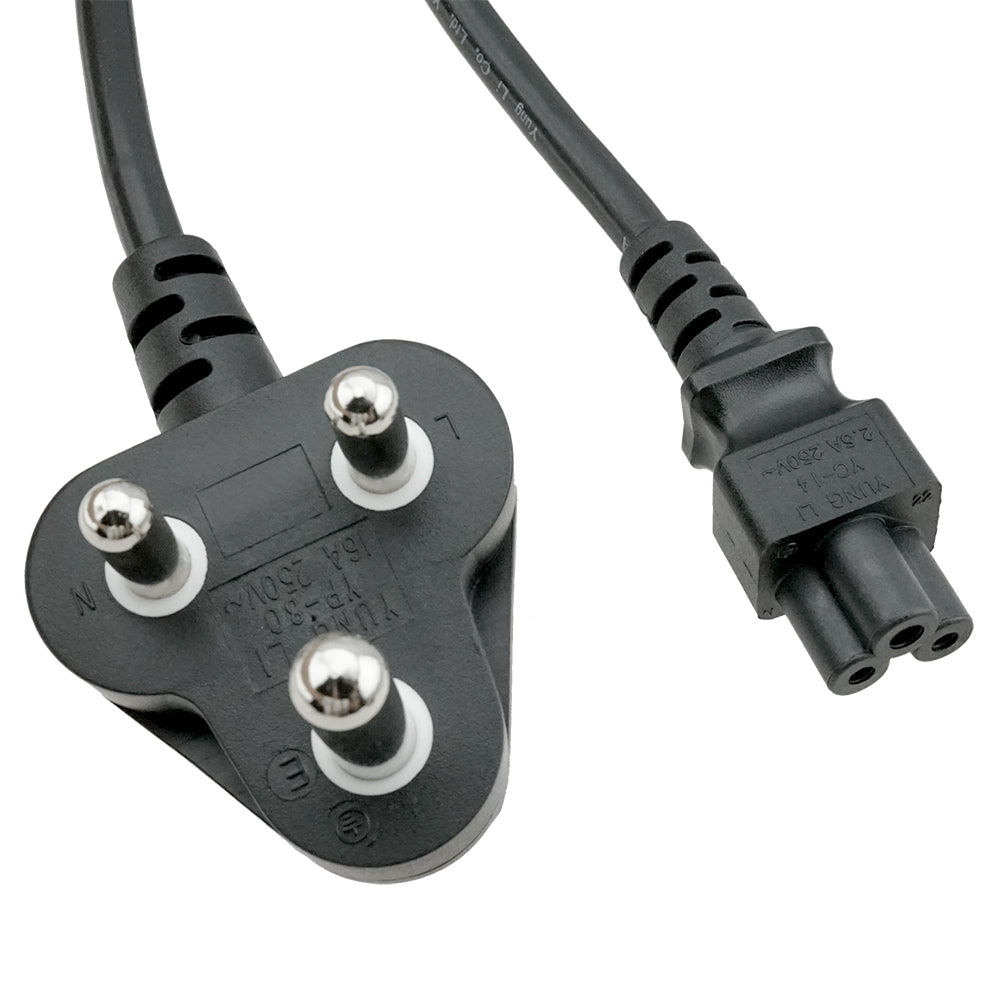

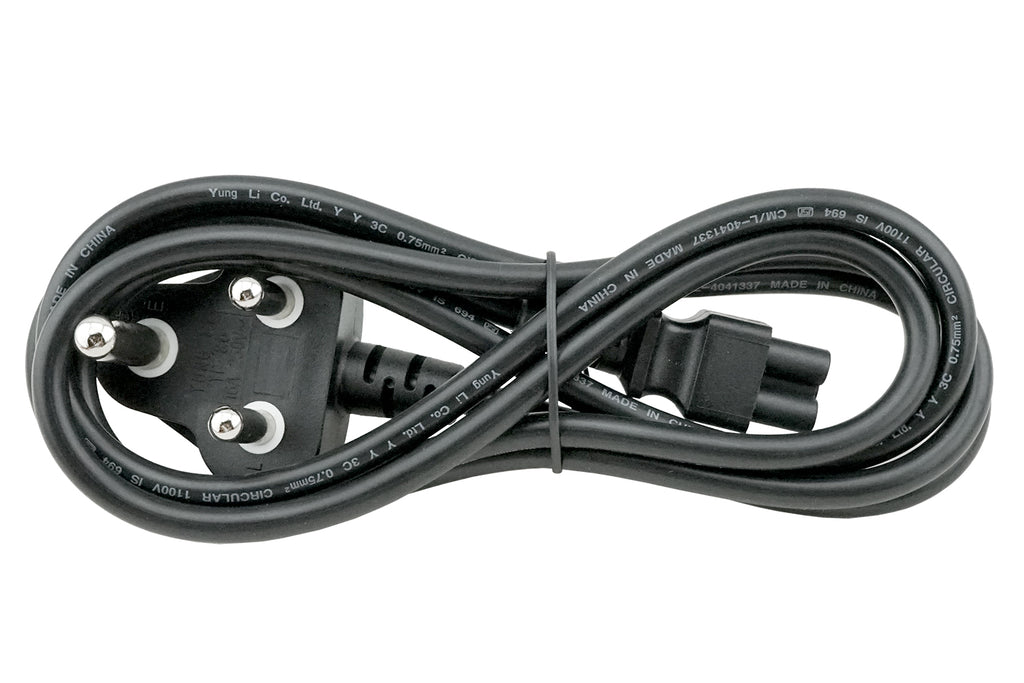

India IS1293 to C5 laptop power cord: India IS-1293 (aka IA16A3 and BS546) 3 pin plug to IEC C5 with Y Y (H05VV-F) 0.75mm² black wire, 6 feet with BIS approval and certified to conform to the IS 694 India standard for PVC insulated cables for working voltages up to 1,100 volts.

Attribute Specification

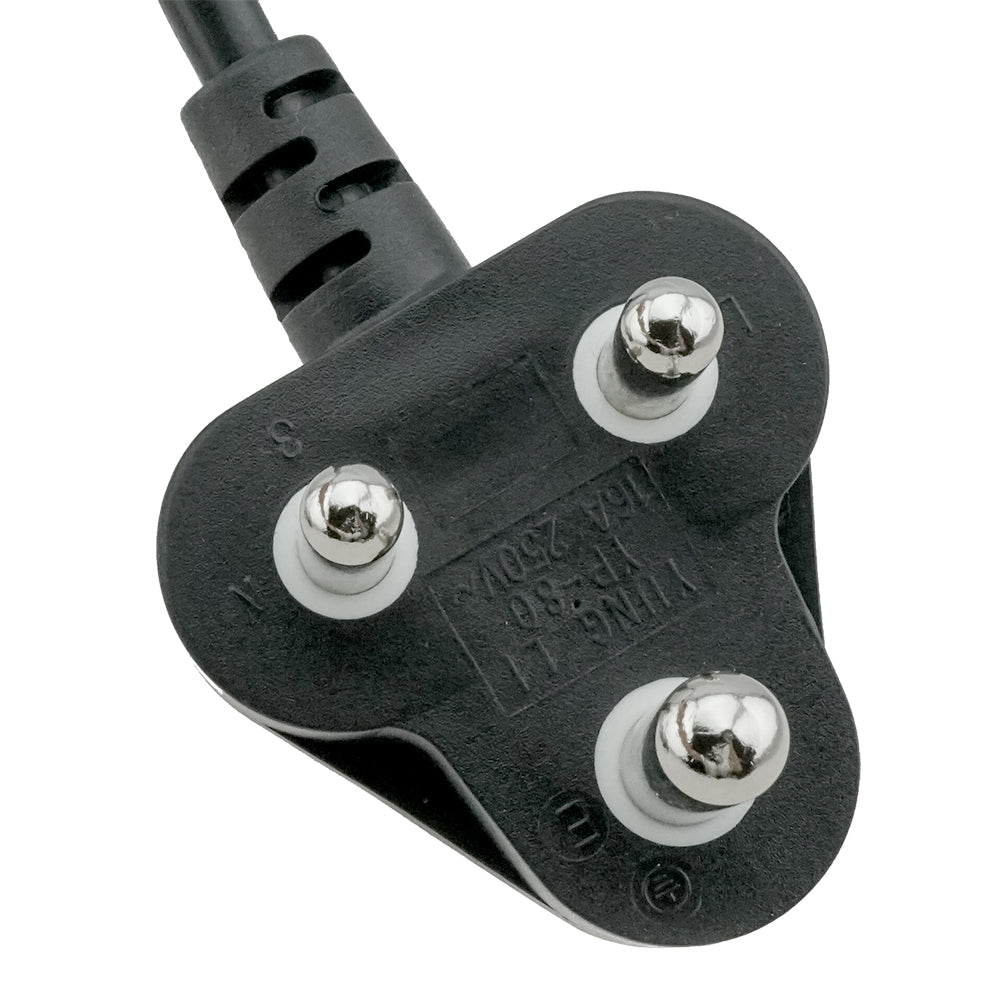

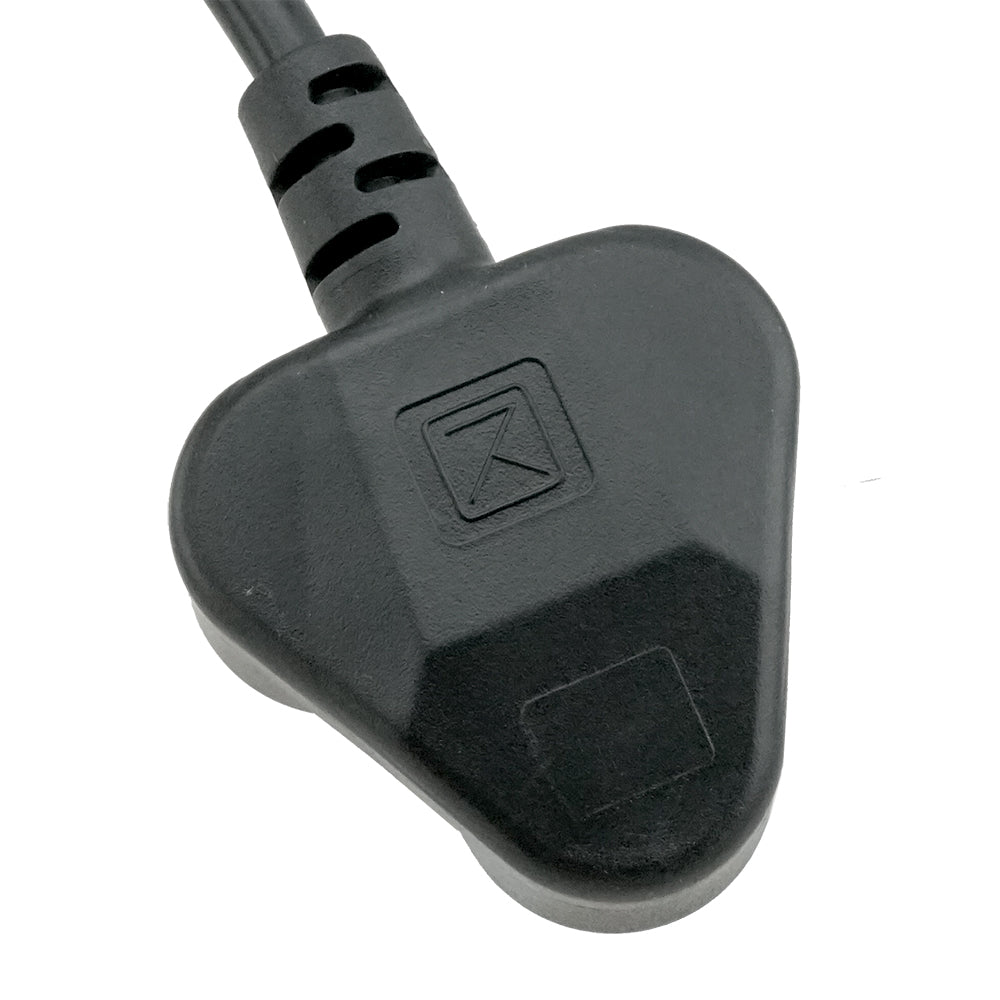

Male Plug India IS1293 (aka IA16A3 or BS546) 3 prong 2.5A

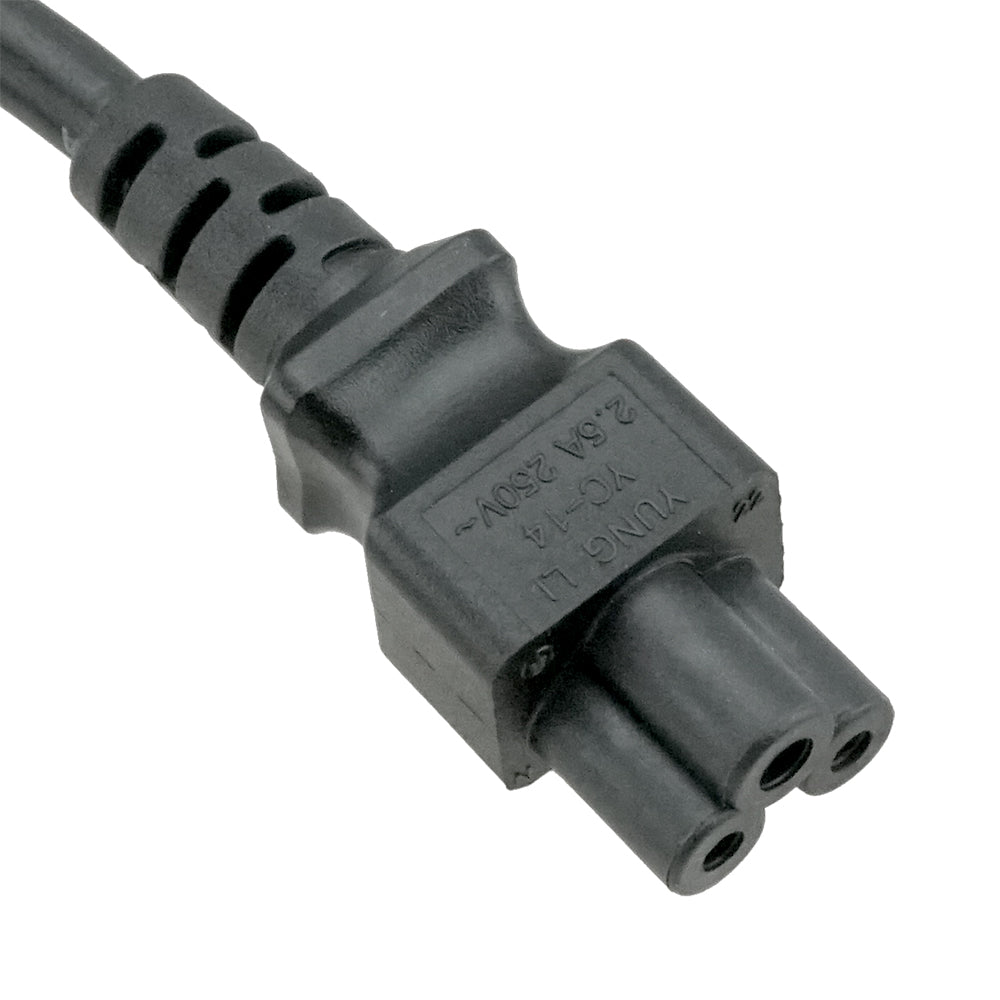

Female Receptacle IEC60320 C5 3 prong 2.5A
Wire Jacket Standard Y Y (H05VV-F)
Gauge 0.75mm²
Conductors 3 wire
Copper Wire Stranding 24 strands of 0.20mm²
Jacket Material PVC
Temperature Rating Up to 70°C
Wire Outer Diameter 6.7mm
Conductor Color Code Black, Red, Green/Yellow (India standard)
Voltage Up to 250 Volts AC
Amperage Up to 2.5 Amps
Color Black
Number Per Carton 60
Carton Weight 32 lbs (14.3kg)
Carton Dimensions 15.75 X 11.8 X 9 inches (40 X 30 X 23cm)
Testing 100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout.
Certifications India BIS
Environmental Compliance RoHS, REACH, Sony Green Partner, ISO14001:2015, ISO9001:2015
Country of Origin China
