IEC C20 to C21 Cords: Hanked and Tied
- Available in a number of different lengths
- High Quality Construction
- Meets All Certification Needs
- Fast & Secure Shipping
- Description
- Product Specification
- Shipping & Returns
- Customer Review

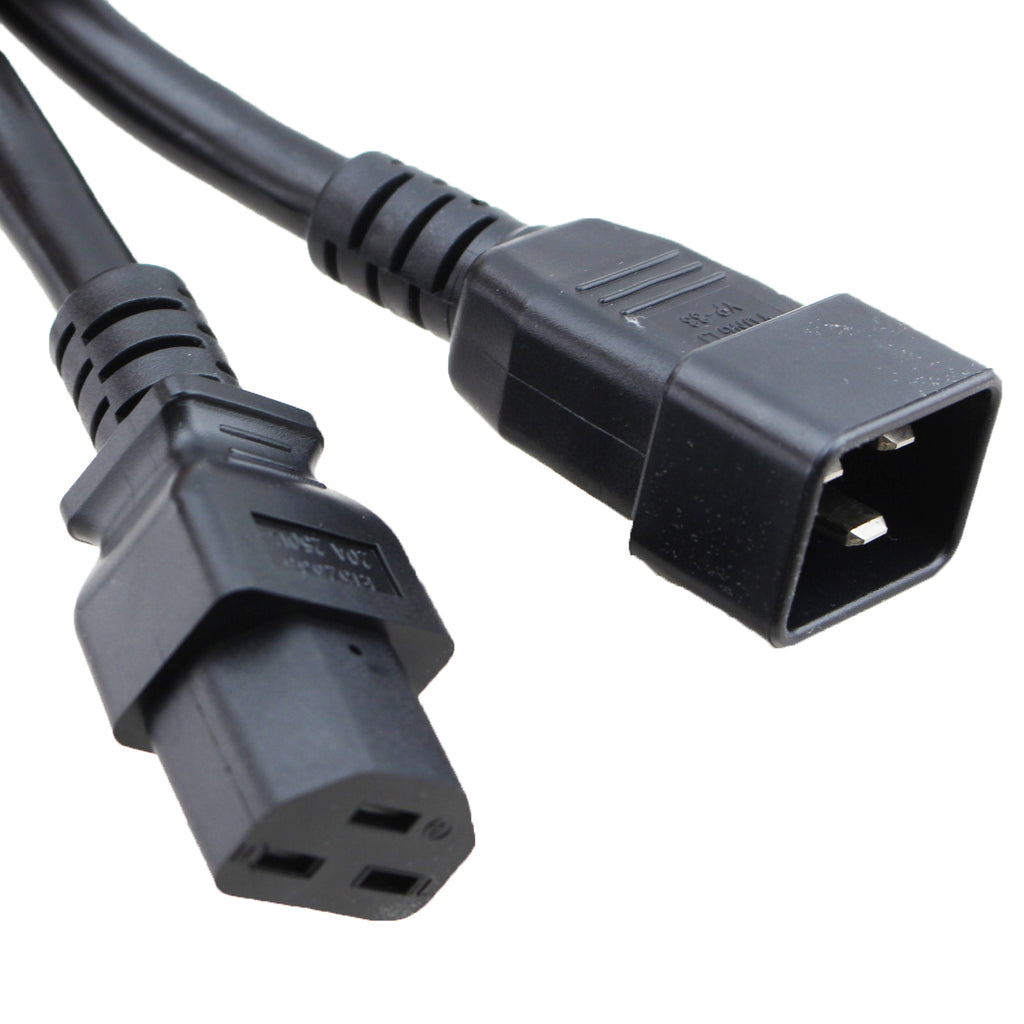

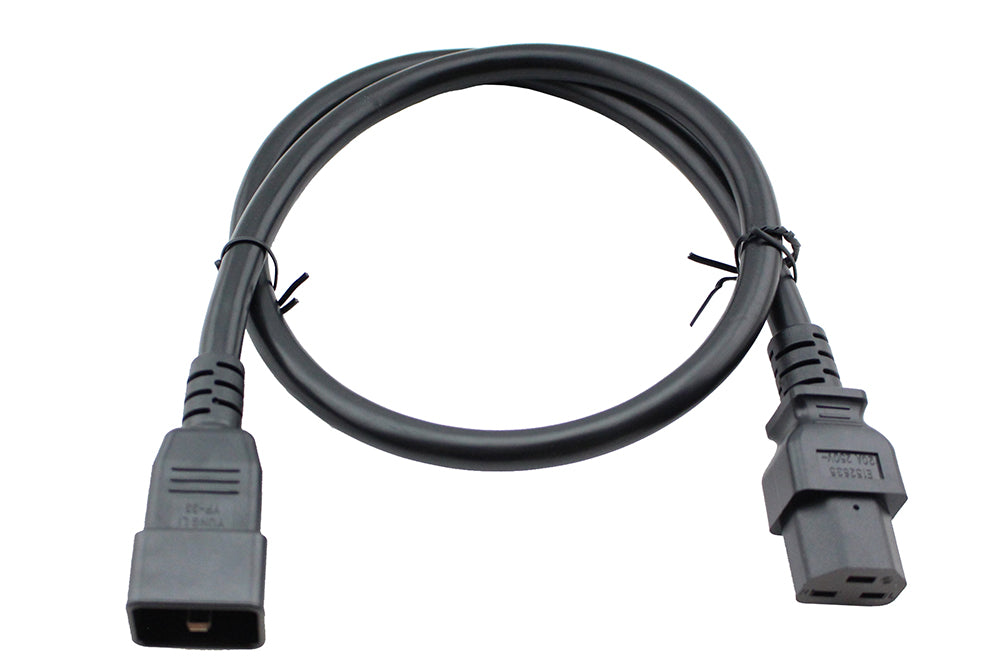

IEC C20 to C21 power cord: IEC C20 3 pin plug to IEC C21 with 12/3 SJT black wire and UL approval. Rated up to 20A 250V. Available in 3 ft, 6 ft, and 10 ft lengths. |
For OEM and Wholesale pricing, please feel free to Live Chat with us, email us at sales@signalandpower.com, or call us at 408-871-7928 for assistance. Documentation links below.
Attribute | Specification |
---|---|

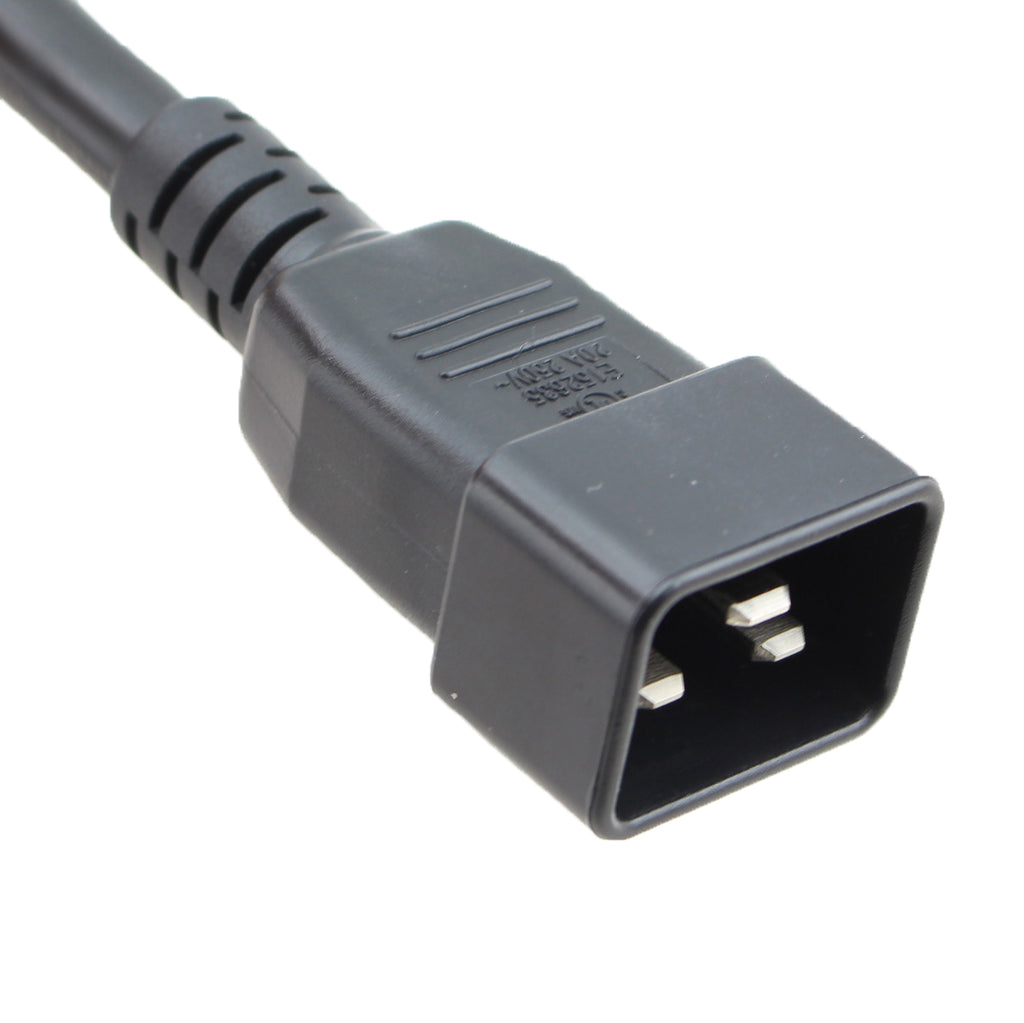

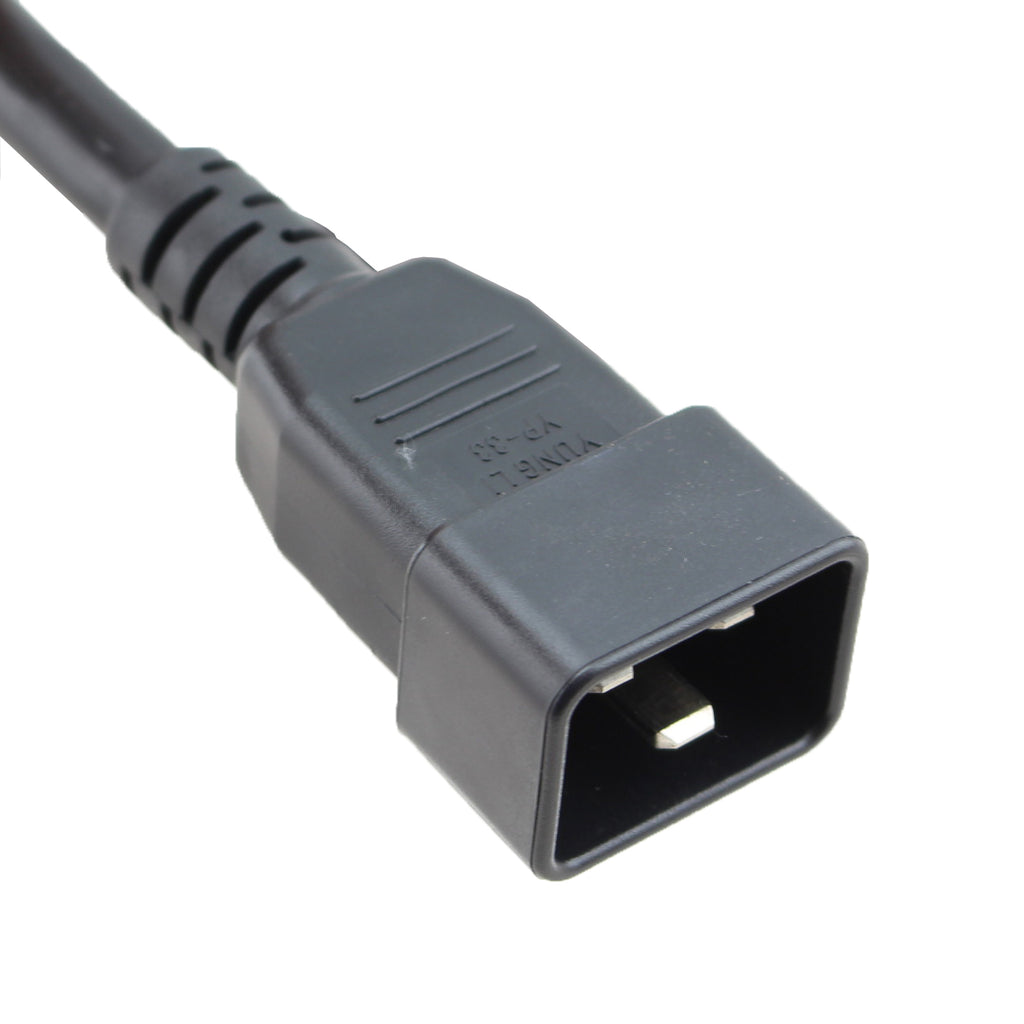

Male Plug | IEC60320-C20 3 prong 20A |

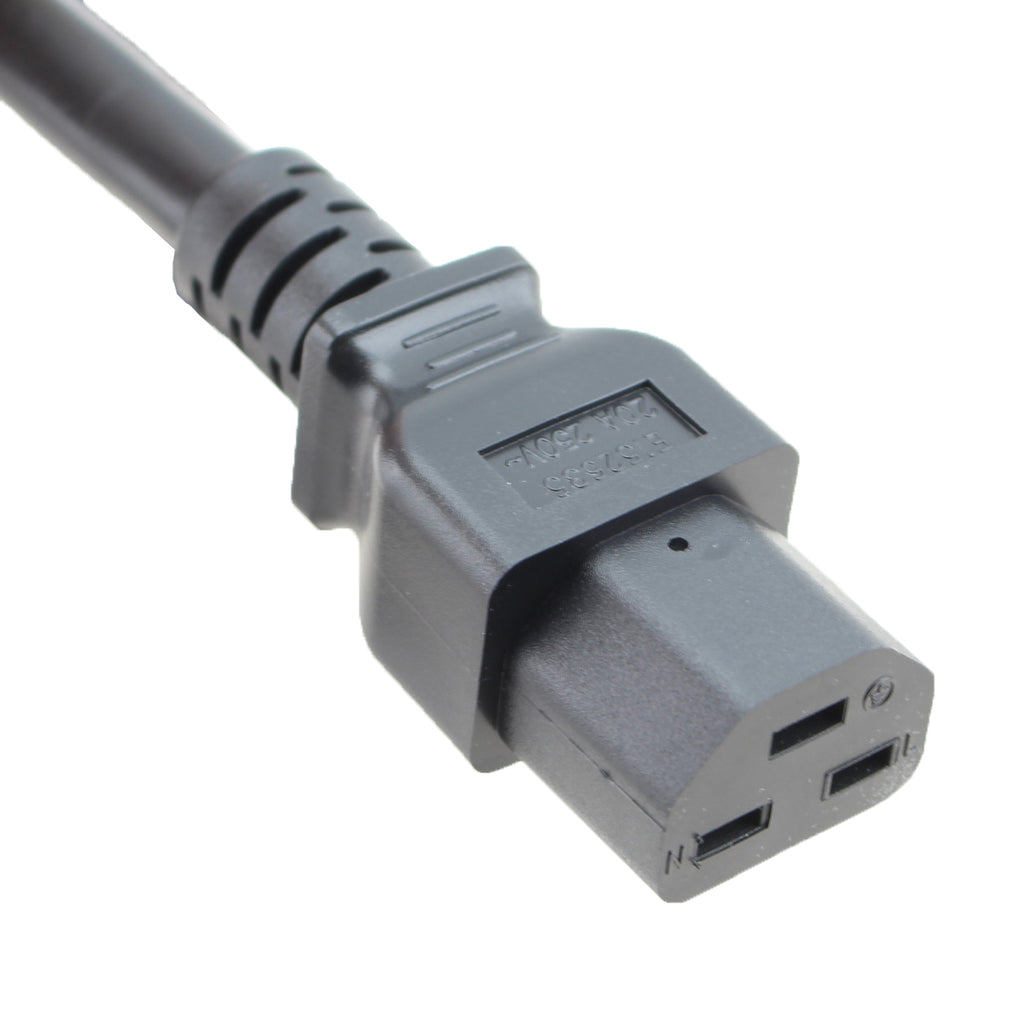

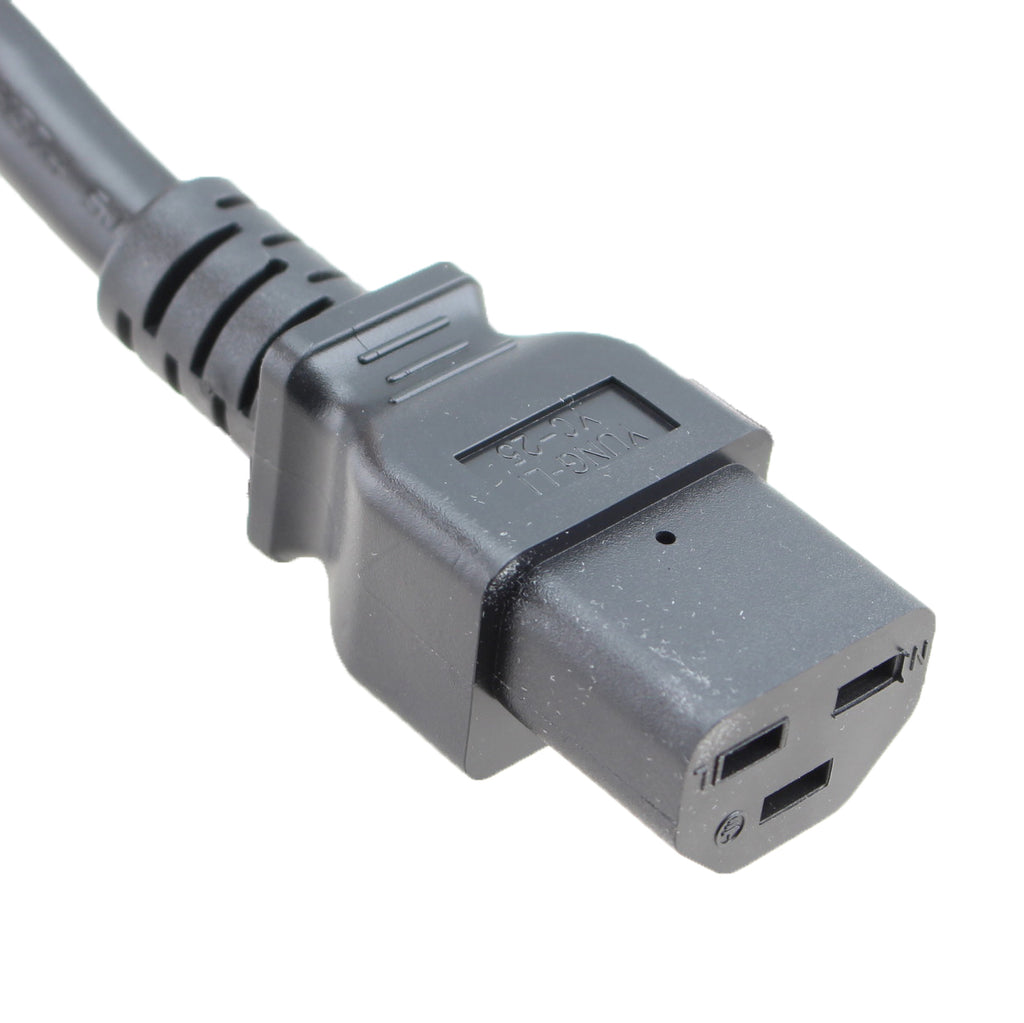

Female Receptacle | IEC60320 C21 3 prong 20A |
Wire Jacket Standard | SJT |
Gauge | 12 AWG |
Conductors | 3 wire |
Copper Wire Stranding | 65 strands of 0.254mm² |
Jacket Material | PVC |
Temperature Rating | Up to 105°C |
Wire Outer Diameter | 11.2mm |
Conductor Color Code | Black, White and Green / NACC (North American color code) |
Voltage | Up to 250 Volts AC |
Amperage | Up to 20 Amps |
Color | Black |
Number Per Carton | 40 |
Carton Weight | 25 lbs (11.3kg) |
Carton Dimensions | 15.75 X 11.8 X 9 inches (40 X 30 X 23cm) |
Testing | 100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout. |
Certifications | UL/cUL Listed |
Environmental Compliance | RoHS, REACH, Sony Green Partner, ISO14001:2015, ISO9001:2015 |
Country of Origin | China |
Attribute | Specification |
---|---|
Male Plug | IEC60320-C20 3 prong 20A |
Female Receptacle | IEC60320 C21 3 prong 20A |
Wire Jacket Standard | SJT |
Gauge | 12 AWG |
Conductors | 3 wire |
Copper Wire Stranding | 65 strands of 0.254mm² |
Jacket Material | PVC |
Temperature Rating | Up to 105°C |
Wire Outer Diameter | 11.2mm |
Conductor Color Code | Black, White and Green / NACC (North American color code) |
Voltage | Up to 250 Volts AC |
Amperage | Up to 20 Amps |
Color | Black |
Number Per Carton | 40 |
Carton Weight | 25 lbs (11.3kg) |
Carton Dimensions | 15.75 X 11.8 X 9 inches (40 X 30 X 23cm) |
Testing | 100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout. |
Certifications | UL/cUL Listed |
Environmental Compliance | RoHS, REACH, Sony Green Partner, ISO14001:2015, ISO9001:2015 |
Country of Origin | China |
