6' Power Cord

China GB2099 to C5

P-0314-06B BLK QTY

Regular price $5.24 Save $-5.24
345 in stock
Shop Wholesale / Login

P-0314-06B

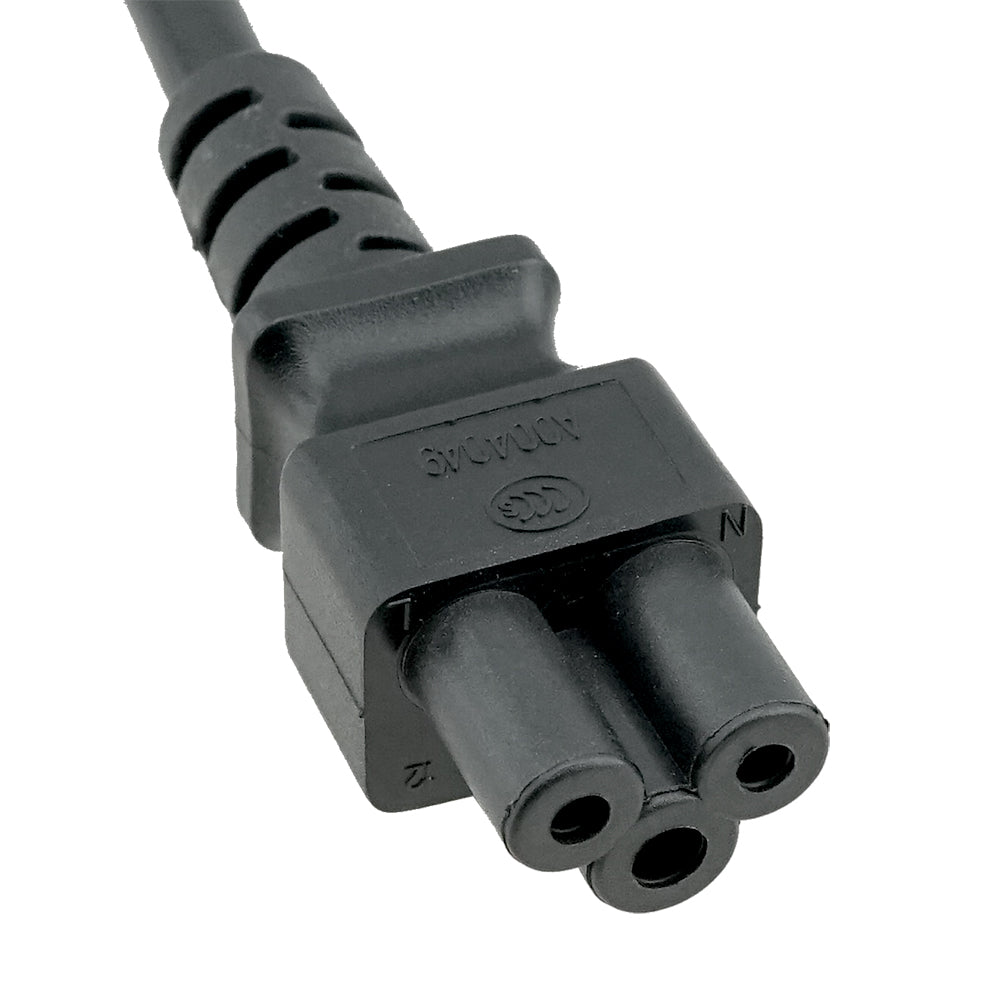

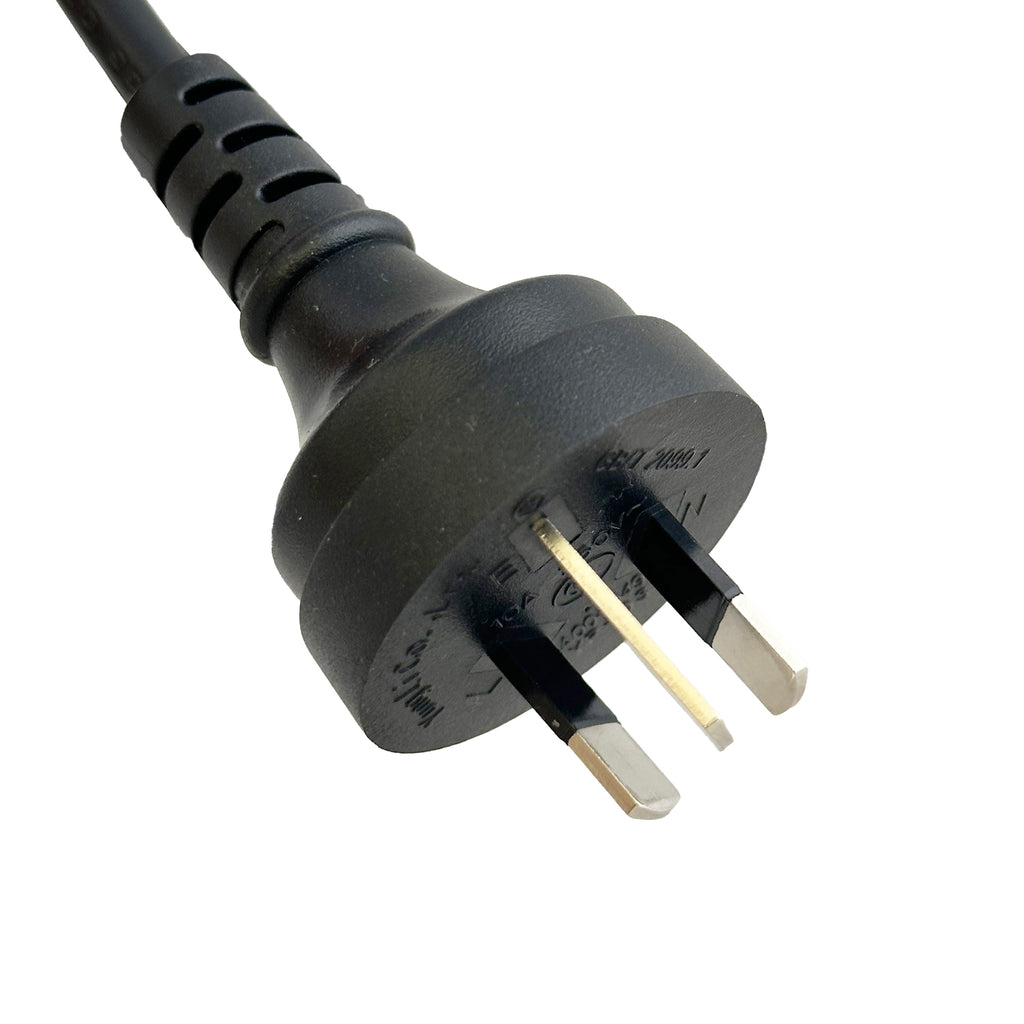

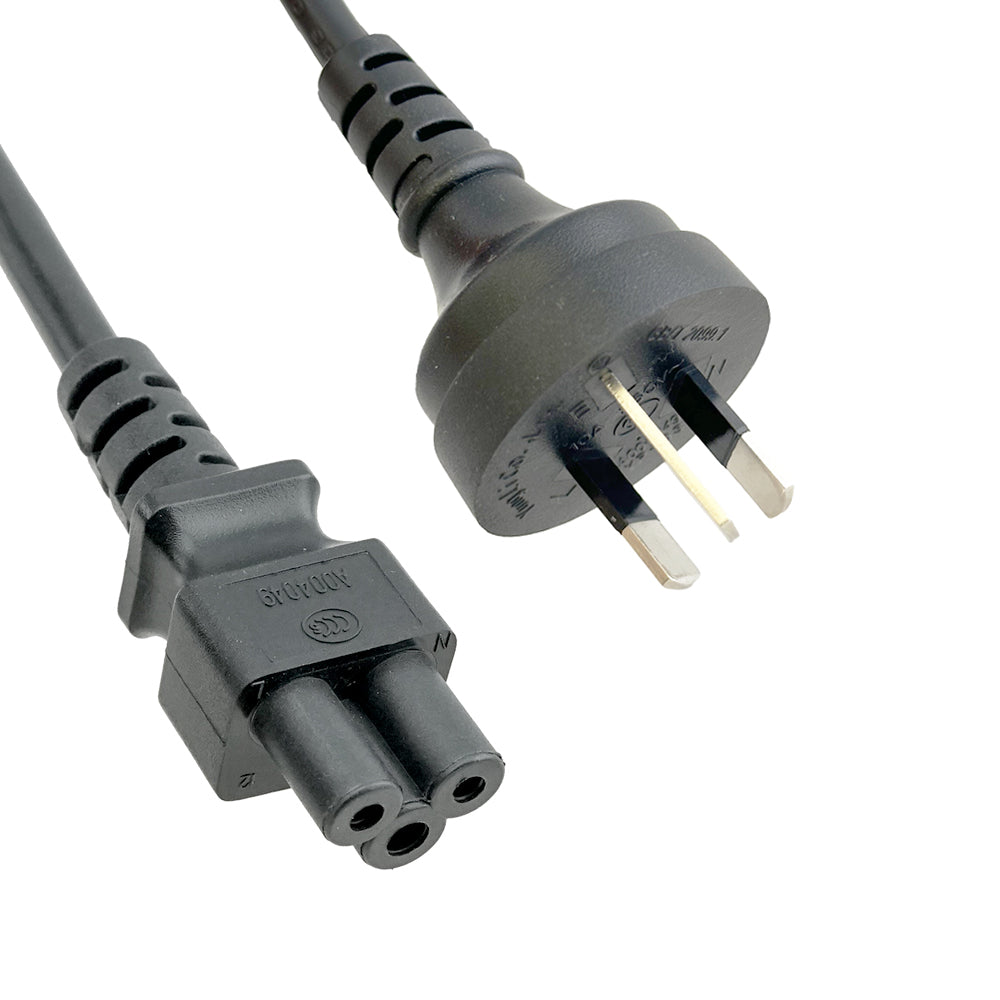

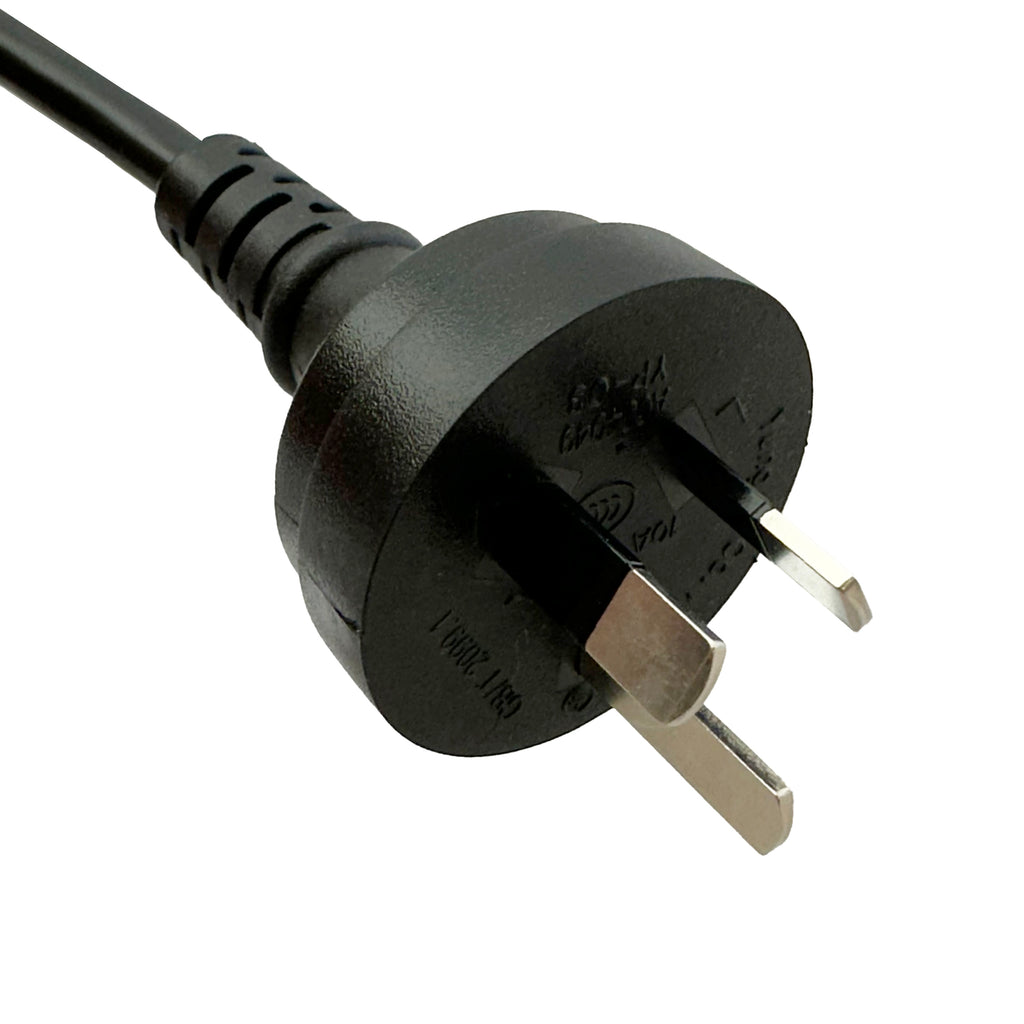

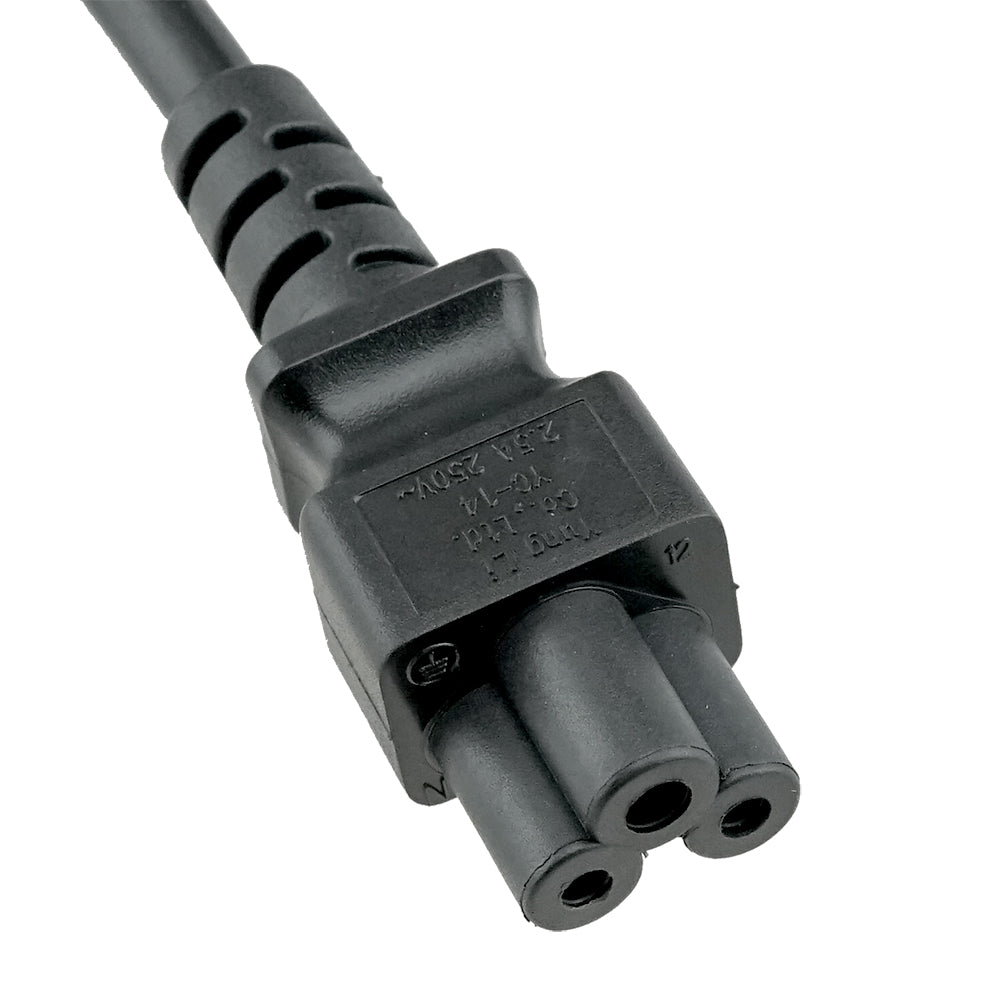

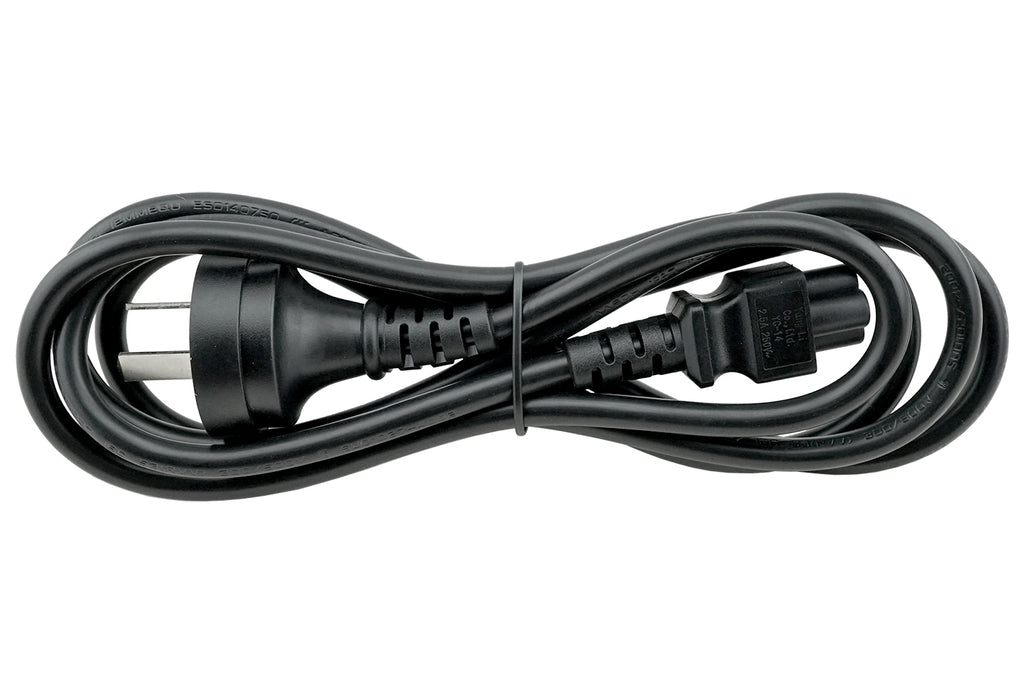

China to C5 power cord: China GB15934/GB2099 standard 3 pin plug to IEC C5 with RVV - H05VV-F black wire, 6 feet. Rated up to 2.5amps 250V with China CCC approval.

Attribute Specification
Male Plug China GB2099 (aka GB15934) 3 prong 2.5A
Female Receptacle IEC60320 C5 3 prong 2.5A
Wire Jacket Standard H05VV-F/RVV
Gauge 0.75mm²
Conductors 3 wire
Copper Wire Stranding 24 strands of 0.20mm²
Jacket Material PVC
Temperature Rating Up to 70°C
Wire Outer Diameter 6.7mm
Conductor Color Code Blue, Brown and Green with Yellow stripe / ICC (International color code)
Voltage Up to 250 Volts AC
Amperage Up to 2.5 Amps
Color Black
Number Per Carton 80
Carton Weight 34 lbs (15.2kg)
Carton Dimensions 15.75 X 11.8 X 9 inches (40 X 30 X 23cm)
Testing 100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout.
Certifications China CCC
Environmental Compliance RoHS, REACH, Sony Green Partner, ISO14001:2015, ISO9001:2015
Country of Origin China
