Angled 1-15p to Angled C7 Power Cord - 6 ft

P-11L913D-06B

We have 345 in stock.

| FAST & SECURE SHIPPING
| PREMIUM QUALITY PRODUCT
$3.49
  • If In Stock, Ready to Ship
  • Available in a number of different lengths
  • High Quality Construction
  • Meets All Certification Needs
  • Fast & Secure Shipping
$3.49
Have Questions? Ask an Expert:
ecommerce@signalandpower.com +1 (408) 871-7928

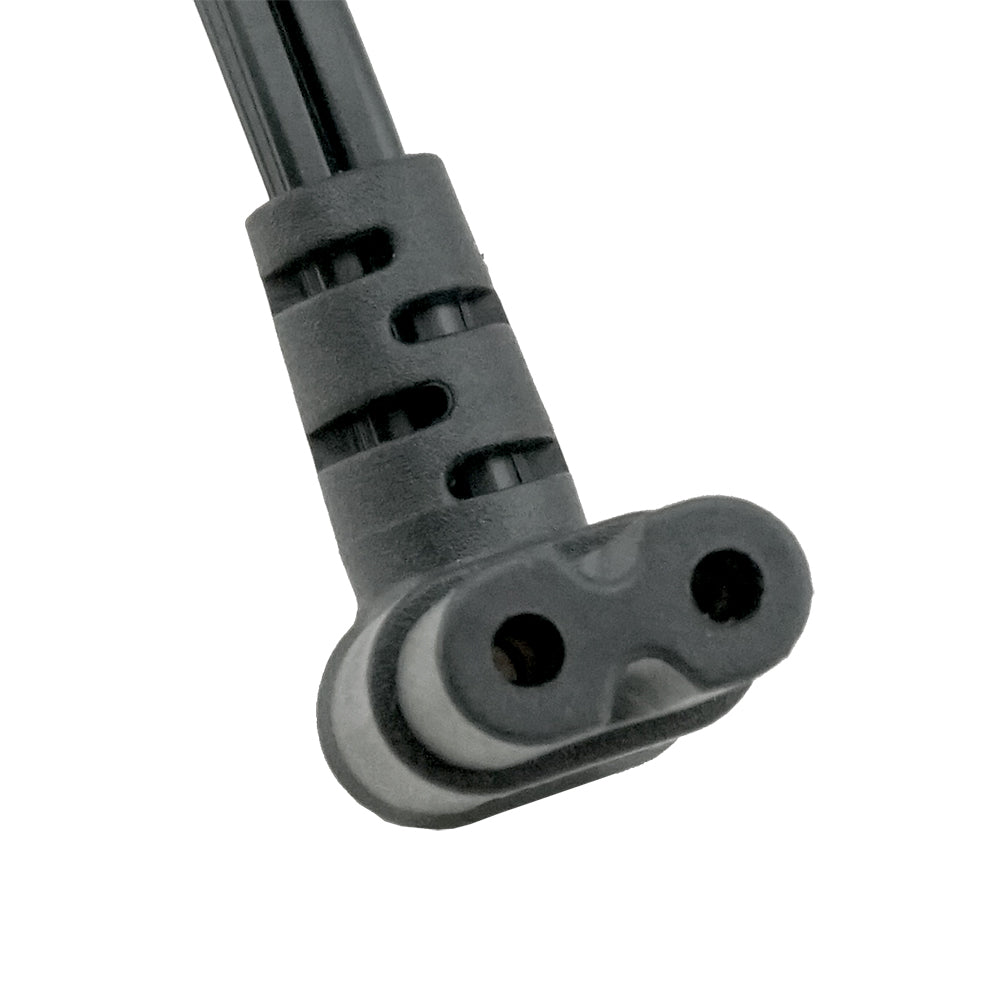

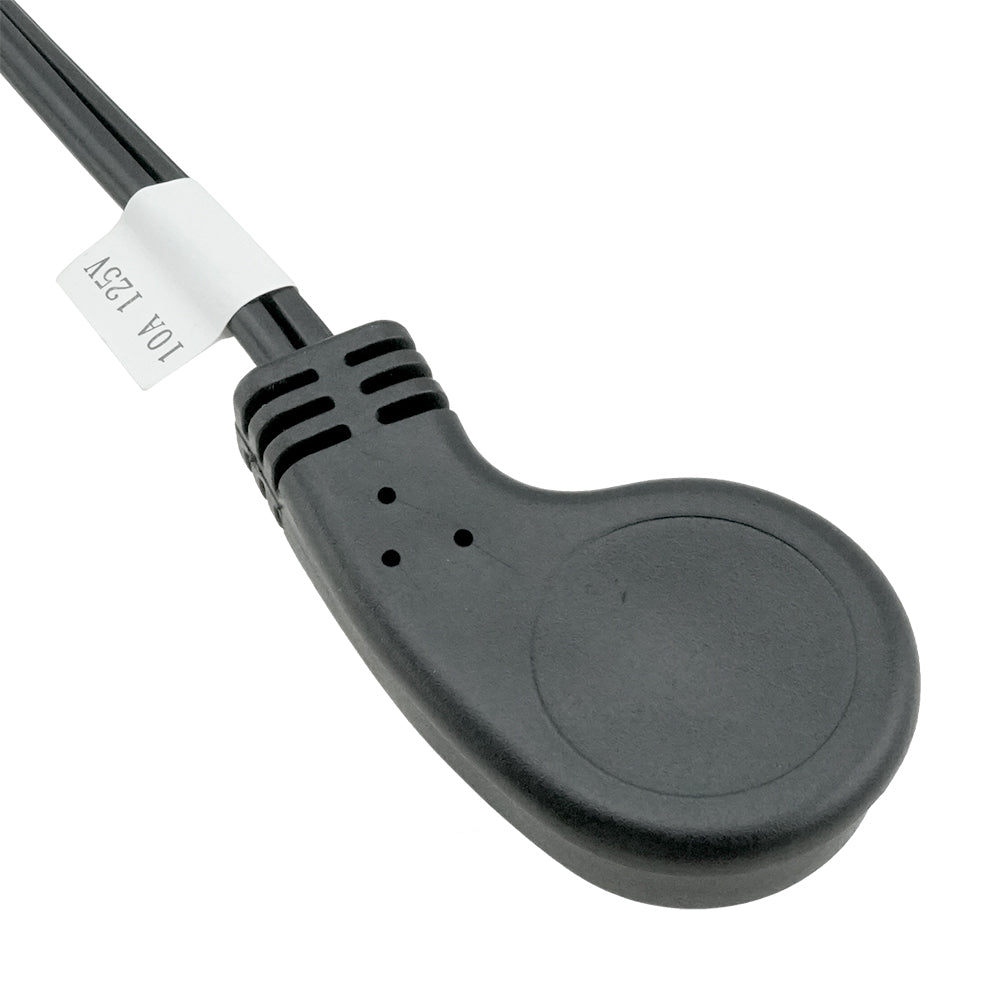

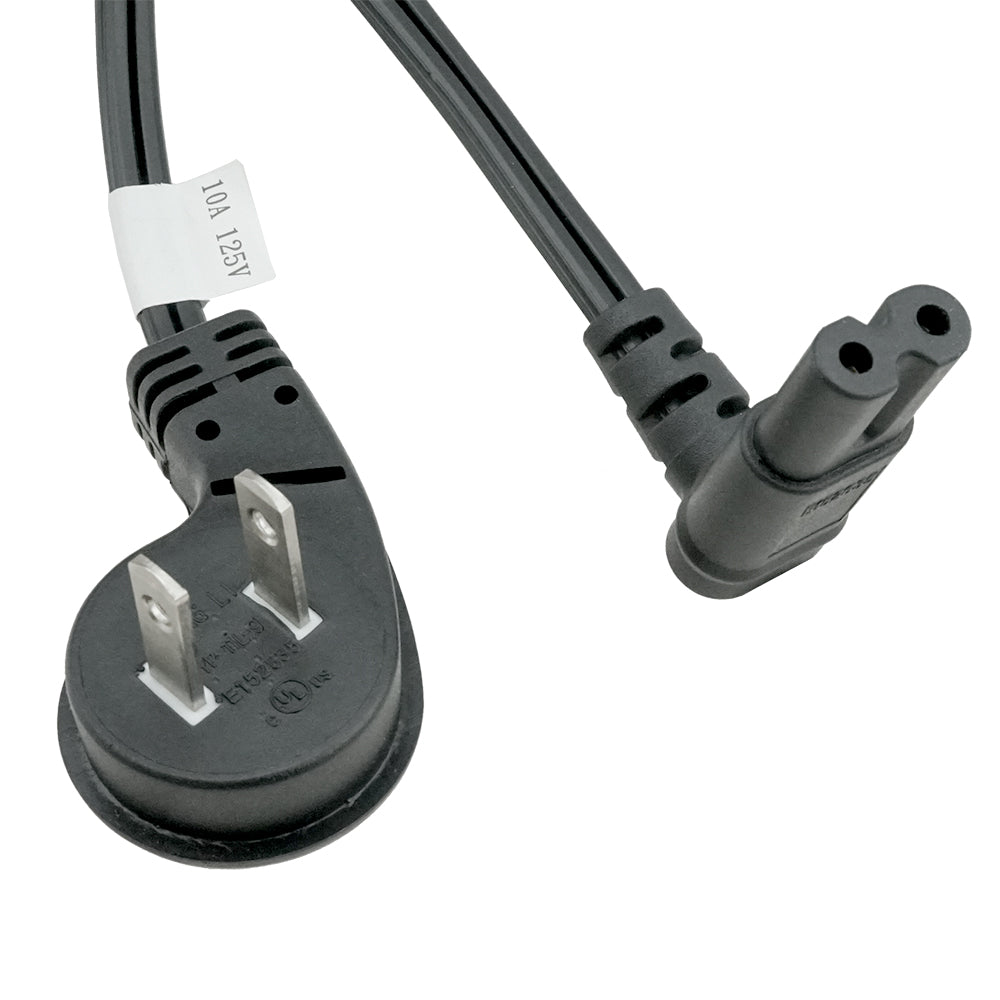

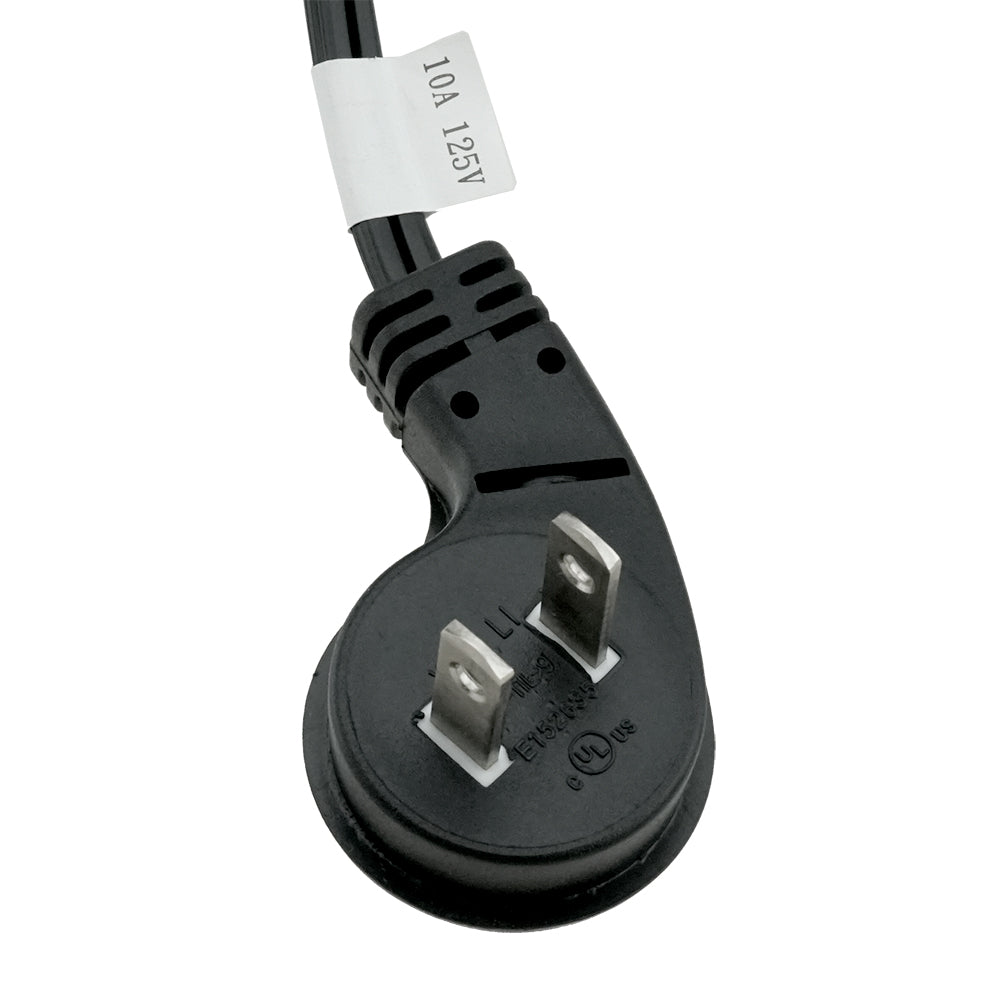

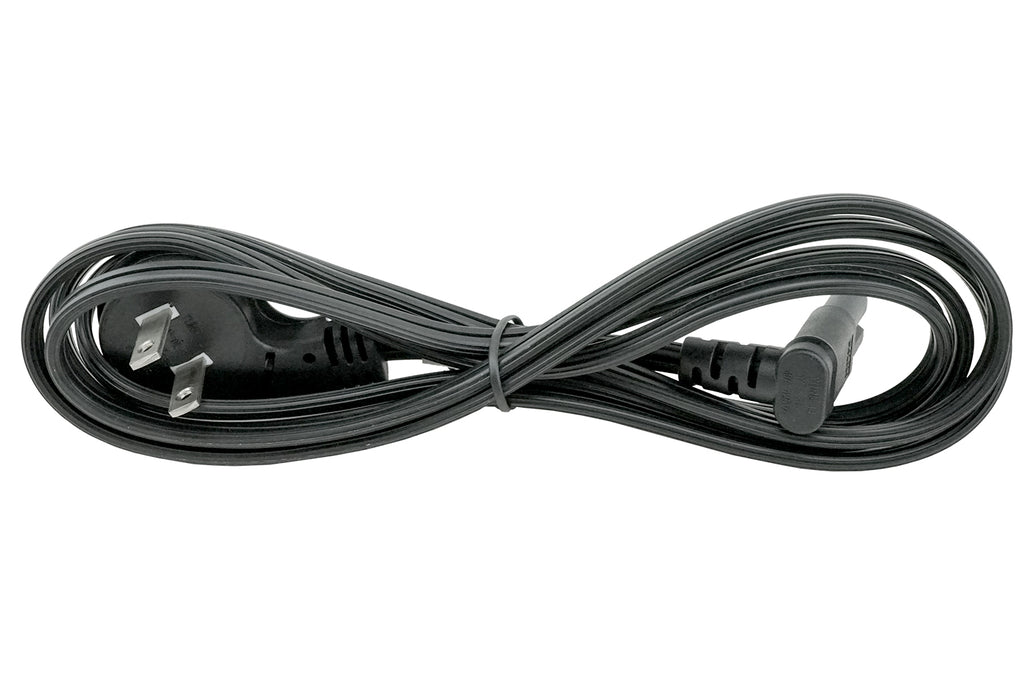

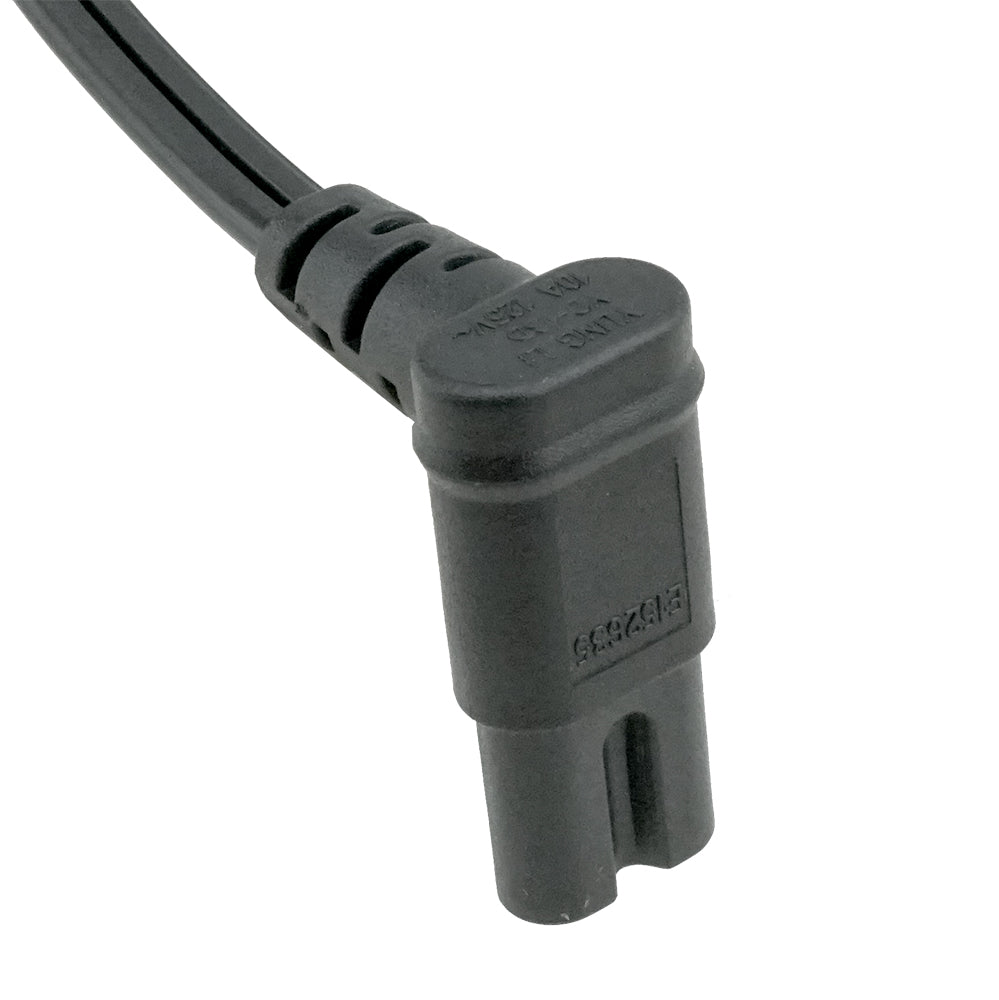

USA NEMA 1-15P ultra low profile angled plug to down angle IEC C7 power cord: USA NEMA 1-15P low profile angled 2 prong plug to IEC C7 with 18/2 SPT-2 wire, 6 feet with cUL approval.


For OEM and Wholesale pricing, please feel free to Live Chat with us, email us at sales@signalandpower.com, or call us at 408-871-7928 for assistance. Documentation links below.

    Drawing         Complete Specs & Certifications         RoHS         REACH
Attribute Specification
Male Plug USA NEMA 1-15P Ultra Low Profile Angled 2 prong 7A
Female Receptacle IEC60320 C7 2 prong 7A
Wire Jacket Standard SPT-2
Gauge 18 AWG
Conductors 2 wire
Copper Wire Stranding 41 strands of 0.16mm²
Jacket Material PVC
Temperature Rating Up to 105°C
Wire Outer Diameter 6.8mm by 3.4mm (Two dimensions because this is not round)
Conductor Color Code Ribbed side and smooth side
Voltage Up to 125 Volts AC
Amperage Up to 7 Amps
Color Black
Number Per Carton 100
Carton Weight 26 lbs (11.4kgs)
Carton Dimensions 15.75 X 11.8 X 9 inches (40 X 30 X 23cm)
Testing 100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout.
Certifications cUL
Environmental Compliance RoHS, REACH, Sony Green Partner, ISO14001:2015, ISO9001:2015
Country of Origin China

Attribute Specification
Male Plug USA NEMA 1-15P Ultra Low Profile Angled 2 prong 7A
Female Receptacle IEC60320 C7 2 prong 7A
Wire Jacket Standard SPT-2
Gauge 18 AWG
Conductors 2 wire
Copper Wire Stranding 41 strands of 0.16mm²
Jacket Material PVC
Temperature Rating Up to 105°C
Wire Outer Diameter 6.8mm by 3.4mm (Two dimensions because this is not round)
Conductor Color Code Ribbed side and smooth side
Voltage Up to 125 Volts AC
Amperage Up to 7 Amps
Color Black
Number Per Carton 100
Carton Weight 26 lbs (11.4kgs)
Carton Dimensions 15.75 X 11.8 X 9 inches (40 X 30 X 23cm)
Testing 100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout.
Certifications cUL
Environmental Compliance RoHS, REACH, Sony Green Partner, ISO14001:2015, ISO9001:2015
Country of Origin China

International Shipping

We have the capability to service international customers and accommodate shipping to locations outside of the USA. For international orders, please contact us directly via email at ecommerce@signalandpower.com or call us at 1-888-788-4884 and a sales representative will help you to place your order and provide accurate international shipping options and pricing.

Returns

Our policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately we can’t offer you a refund or exchange. To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging. To complete your return, please email us with your order number at ecommerce@signalandpower.com with Return Request in the subject line. We will review your request and respond with a return authorization if accepted. There are certain situations where only partial refunds are granted (if applicable): Any item not in its original condition, is damaged or missing parts for reasons not due to our error. Any item that is returned more than 30 days after delivery.

Refunds

Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund. If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within a certain amount of days.

Sale Items

Only regular priced items may be refunded, unfortunately sale items cannot be refunded.

Exchanges

We only replace items if they are defective or damaged. If you need to exchange it for the same item, send us an email at ecommerce@signalandpower.com and send your item to: SIGNAL+POWER, 60 Mosswood Blvd, Youngsville, NC 27596

Return Shipping

To return your product, you should mail your product to: SIGNAL+POWER,60 Mosswood Blvd,Youngsville, North Carolina 27596 You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are non-refundable. If you receive a refund, the cost of return shipping will be deducted from your refund. Depending on where you live, the time it may take for your exchanged product to reach you, may vary. If you are shipping an item over $75, you should consider using a trackable shipping service or purchasing shipping insurance. We don’t guarantee that we will receive your returned item. For new orders, please allow 1 business day for order processing and shipment preparation. We do not operate on weekends.

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
M
Mark V. (Commerce, Michigan)
Just what was needed

Used these cords to power LED power supplies installed in kitchen cabinets. The cords enabled me to keep the cords tight to the rear wall of the cabinet.
